EP 1136
230 Volts - High-performance industrial vacuum cleaner designed for extracting dry dust
Configurable Combination Filter System
Two filter stages with dust classes M and H
Customizable to fit your process
Various filter and disposal options, as well as safety features
Sturdy and durable
, made of V2A stainless steel (1.4301), for parts that come into contact with the product
Configure your extraction solution now—see below for all the details. Or get personalized advice —we’re happy to help!
Areas of application
Powerful industrial vacuum cleaner for picking up all types of dry dust
The EP 1136 is a powerful industrial vacuum cleaner designed to collect all types of dry dust—from coarse debris to fine microparticles (μm).
High-quality components—well-engineered bypass units and sound-insulated turbo fans—ensure reliable performance and high quality standards in industrial applications.
The robust, smooth-running chassis enables high mobility, while the compact, modular design —with product-contacting parts made of high-quality V2A stainless steel —is engineered for durability and ease of use.
A cyclone pre-separator helps remove Fine Dust and coarse material, thereby reducing the load on the filtration system.
As is standard with EVOTEC , the EP 1136can be flexibly tailored to your individual process. The combination filter system is based on dust class M as standard and can be supplemented with a second filter stage of dust class H featuring an H14 absolute cartridge filter to meet higher safety requirements.
An optional cartridge filter upgrade to dust class M with manual atmospheric pressure cleaning is also available.
The waste disposal system can also be configured to suit the process — V2A stainless steel waste bins with a 60-liter capacity or the Longopac system for particularly low-dust disposal.
Included in delivery:
3.5 m suction hose (Ø 50 mm) and crevice tool. Power cord length: 8 m.
Technical data
| Model | EP 1136 | EP 1136 LP | |
|---|---|---|---|
| Tension | Volt | 230 | 230 |
| Max. air volume | Watt | 3.600 | 3.600 |
| Max. air volume | m³/h | 490 | 490 |
| Negative pressure | mbar | 210 | 210 |
| Filter area “M” | m² | 2,2 | 2,2 |
| Filter area “H” | m² | 2,0 | 2,0 |
| Waste disposal | Dirt container 60 l | Longopac | |
| Protection class | IP 33 | IP 33 | |
| Sound pressure level | dB(A) | 78 | 78 |
| Suction connection | Ø mm | 80 | 80 |
| Dimensions (LxWxH) | mm | 860x680x1380 | 860x680x1380 |
| Weight | kg | 75 | 75 |
| Dust class M | Art. no. | 151-1080 | 151-1086 |
| Dust class H | Art. no. | 151-1081 | 151-1087 |
| Cartridge filter Upgrade | Art. no. | 053-3003 | 053-3003 |
Powerful industrial vacuum cleaner for picking up all types of dry dust

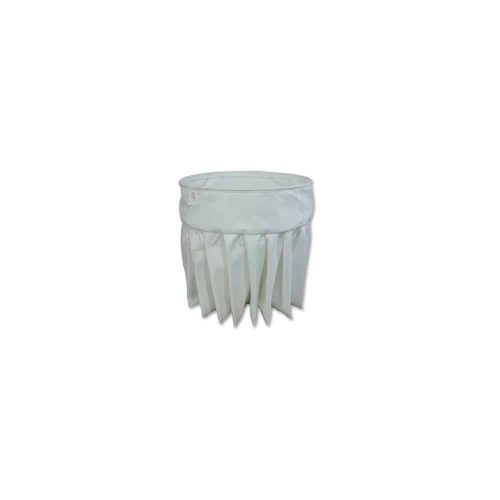

1st filter stage: Dust class M
Durable polyester needle-punched felt filter with a PTFE or PUR membrane, offering high filtration efficiency for a long service life.
2nd filter stage: Dust class H
Absolut H14 Cartridge Filter for the Finest Particles and Maximum Safety
Effective filter cleaning: Long filter service life and extended maintenance intervals
Effective, easy-to-use filter cleaning—either manually or using atmospheric pressure—for high filtration efficiency and long operating intervals without interruption.
Filter Monitoring for Maximum Safety
Vacuum gauge for filter monitoring and controlling consumable costs
Tool-Free Filter Replacement
A clean, hassle-free filter change for employees and maintenance staff

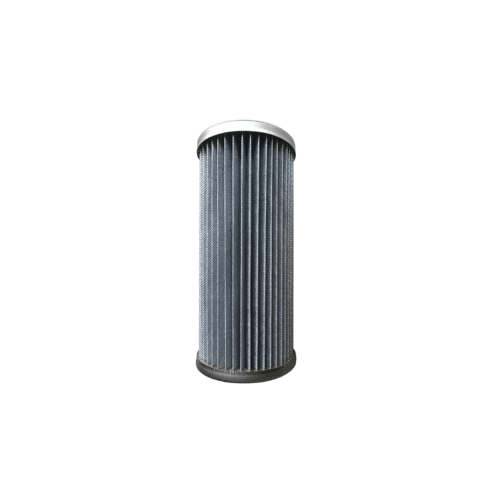

Upgrade: "M" Cartridge Filter System with Backwash
3 aluminum-coated, electrically conductive filter cartridges (2.4 m²) with manual atmospheric pressure cleaning
Replacement filter cartridges (3 required per unit):
Configurable Waste Disposal System

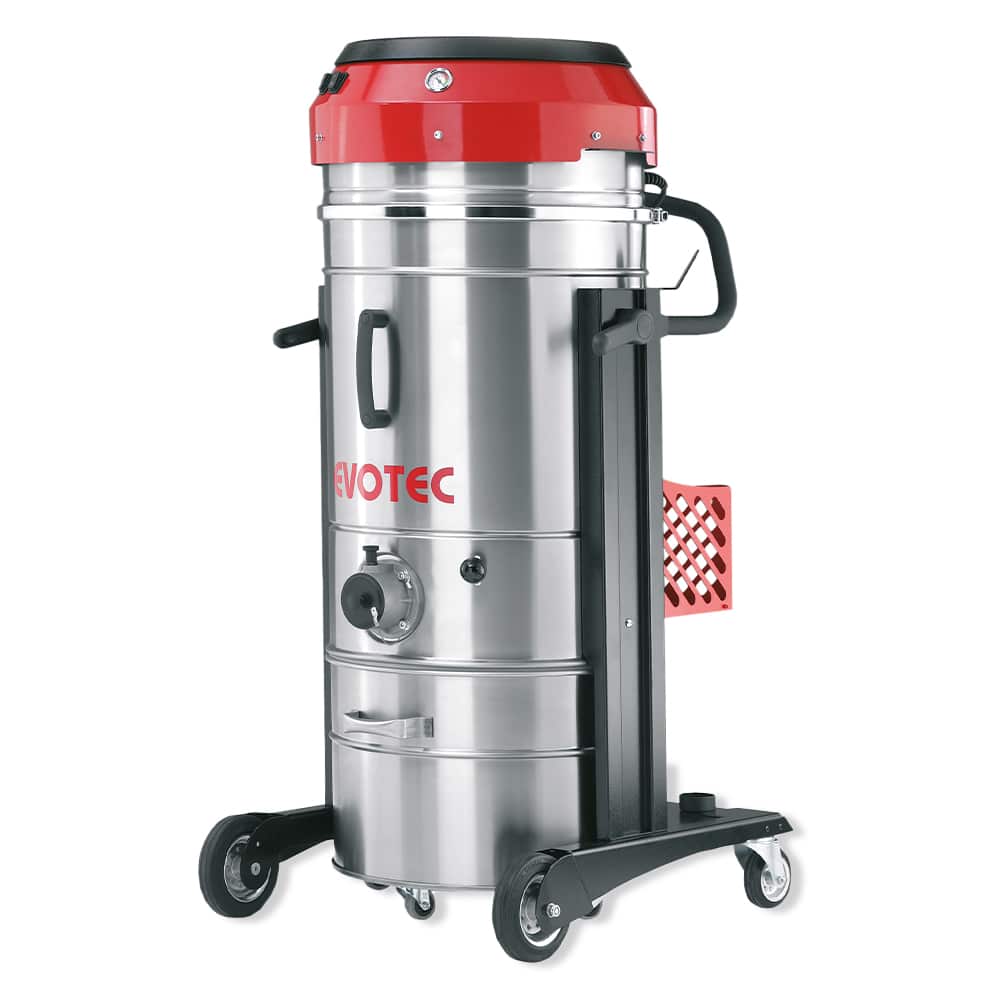

60 l dirt container
Lowerable V2A stainless steel debris container with smooth-rolling casters for easy disposal of the vacuumed material

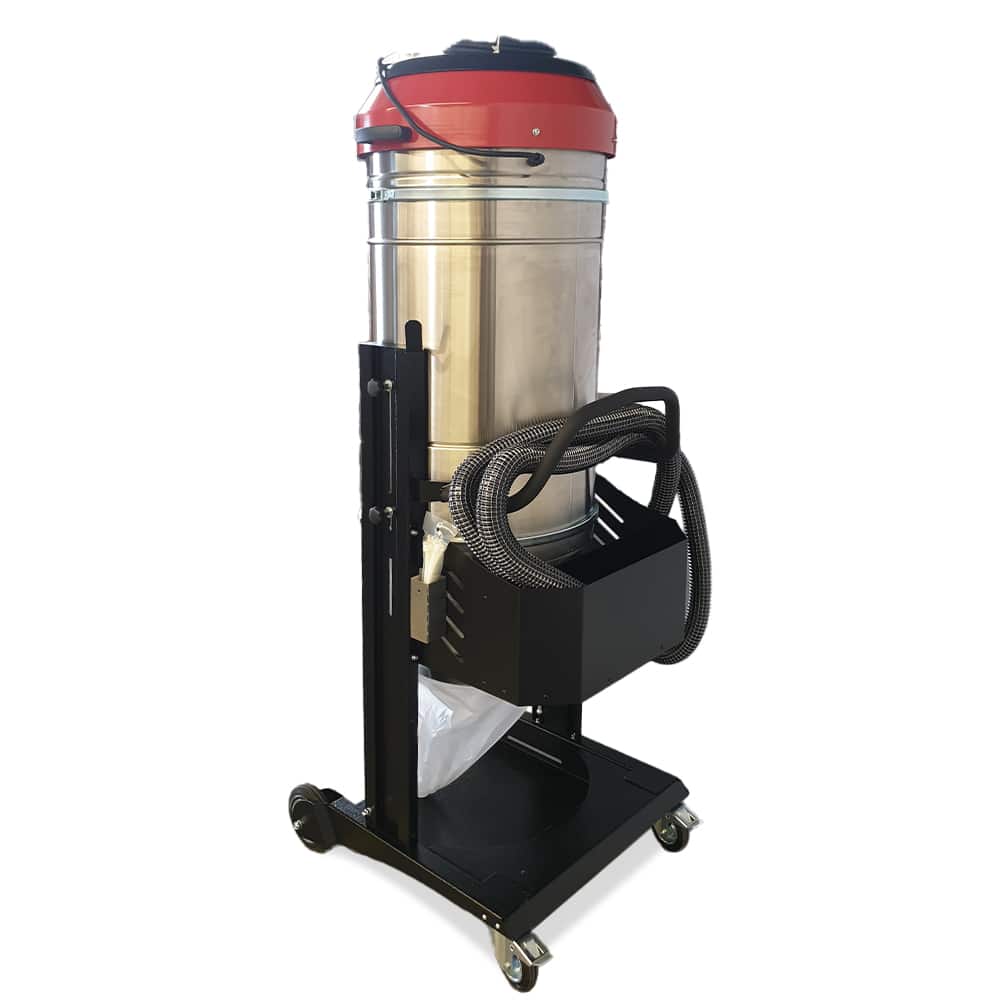

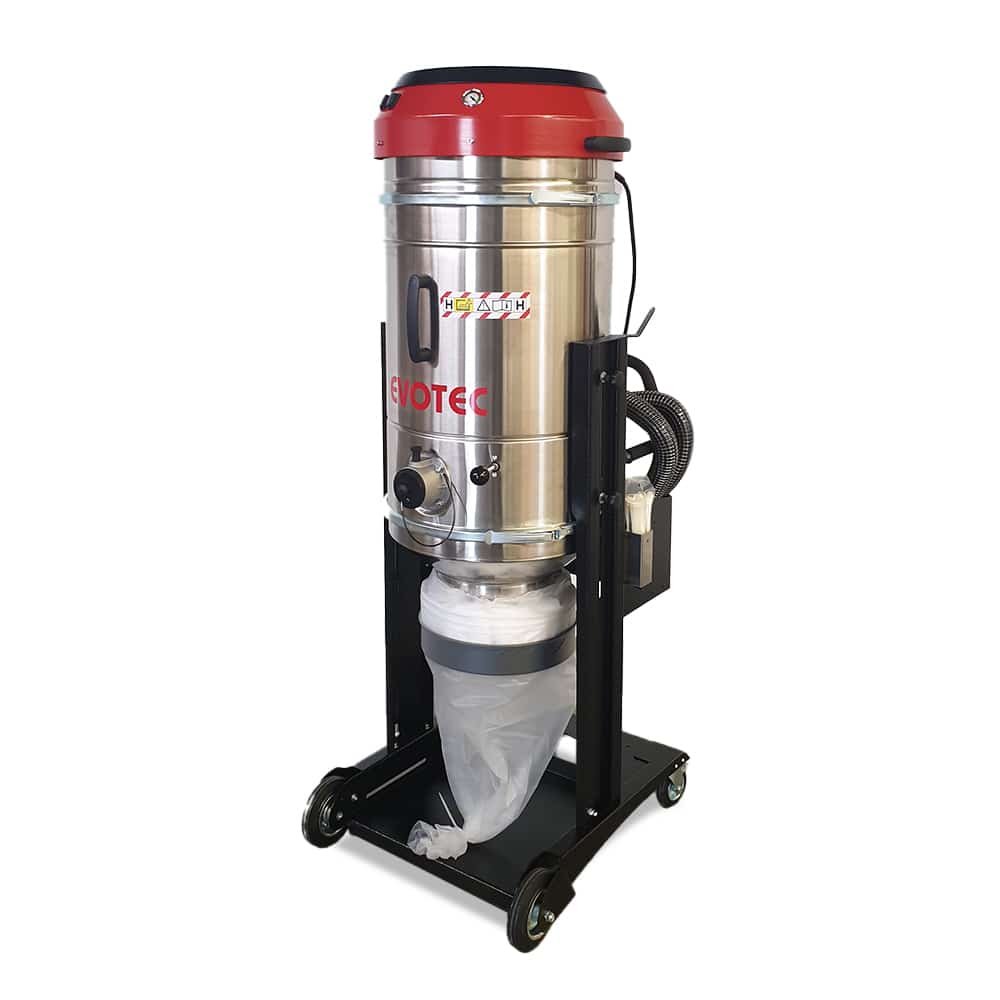

Longopac System
Low-contamination disposal in an "endless bag"
