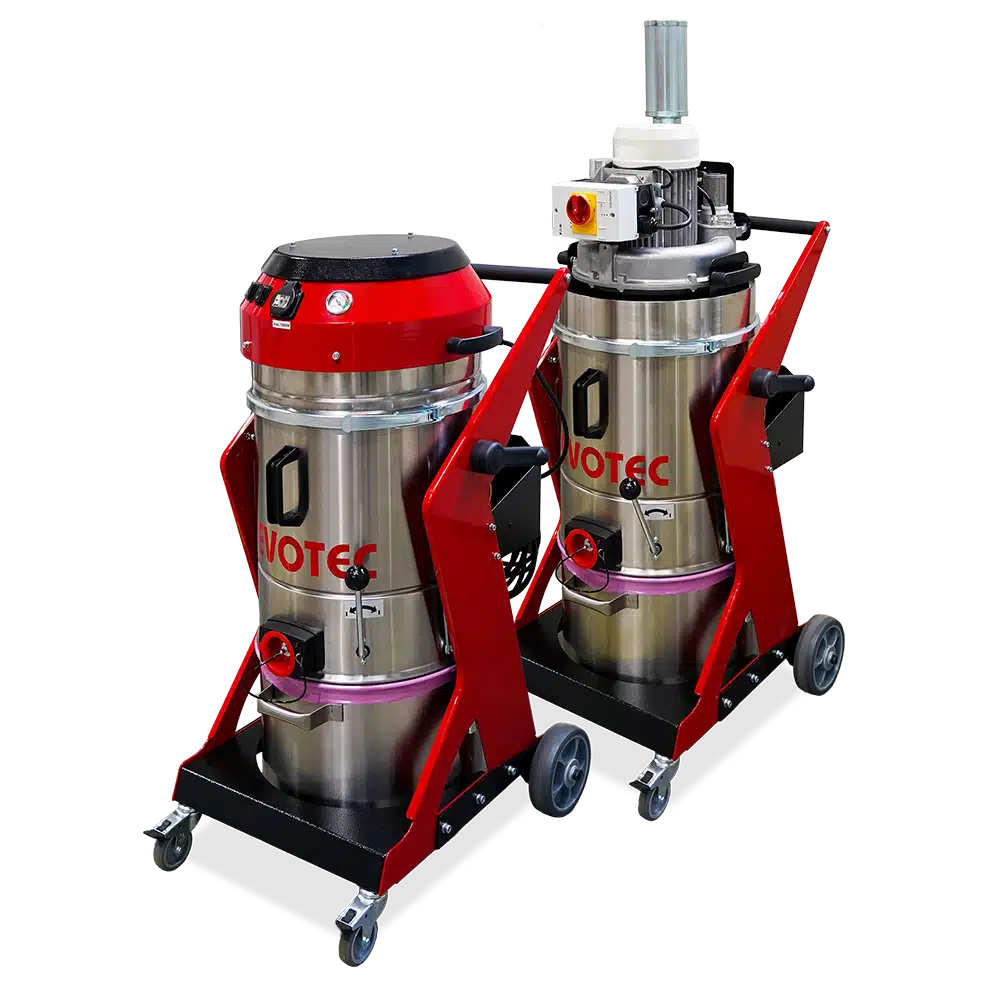

ECODustPro
230 Volts - High-performance industrial vacuum cleaner designed for extracting dry dust
Configurable Combination Filter System
Two filter stages with dust classes M and H
Customizable to fit your process
Various filter and disposal options, as well as safety features
Asbestos-Related Work in Accordance with TRGS 519 - IFA-Certified
ECODustPro 12/24 DGUV Test Certificate as proof of the highest safety standards
Explosion-proof design
ECODustPro 15 as an explosion-proof safety model for use in ATEX Zone 22
Sturdy and durable
, made of V2A stainless steel (1.4301), for parts that come into contact with the product
Configure your extraction solution now—see below for all the details. Or get personalized advice —we’re happy to help!

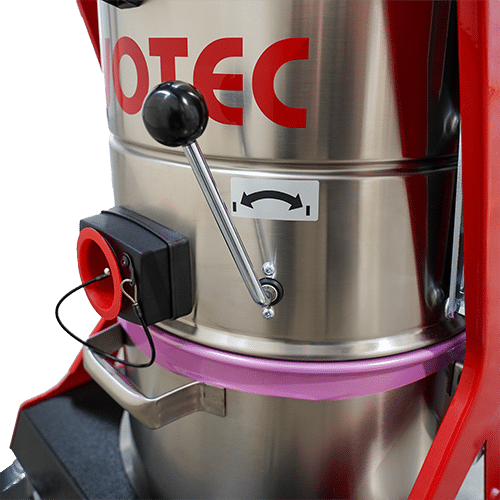

Long filter service life and low consumable costs thanks to filter cleaning—high filtration efficiency and long operating intervals without interruption.

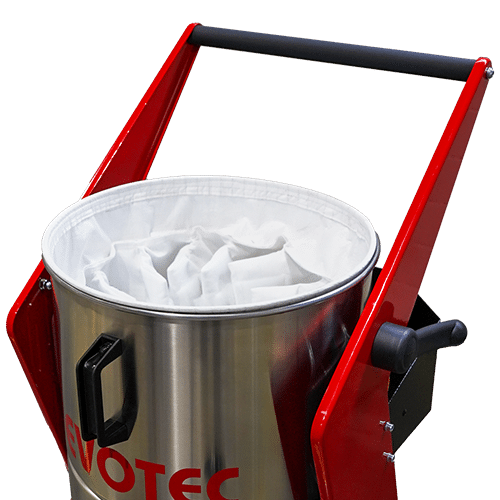

Tool-free filter replacement thanks to the removable motor head—making it easy and clean for employees and maintenance staff.
Upgrade: Cartridge filter system with atmospheric pressure backwashing

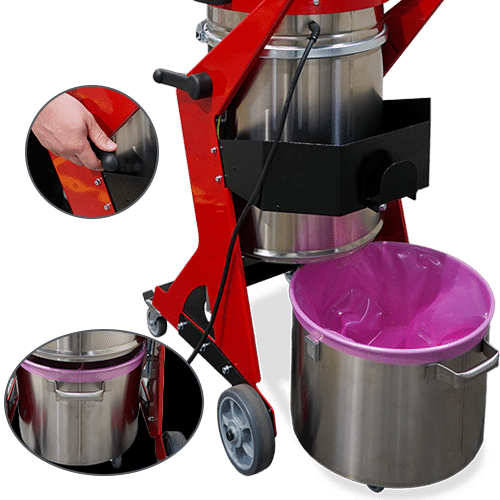

Lowerable waste bin with swivel casters for easy disposal – Waste bin capacity: 25 L, 35 L, or 50 L

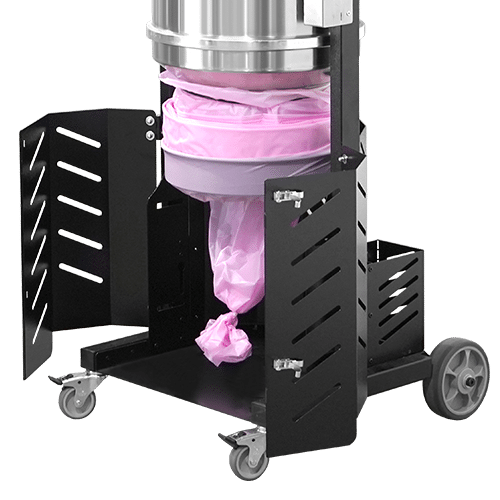

Longopac model with lockable safety doors and rear storage space

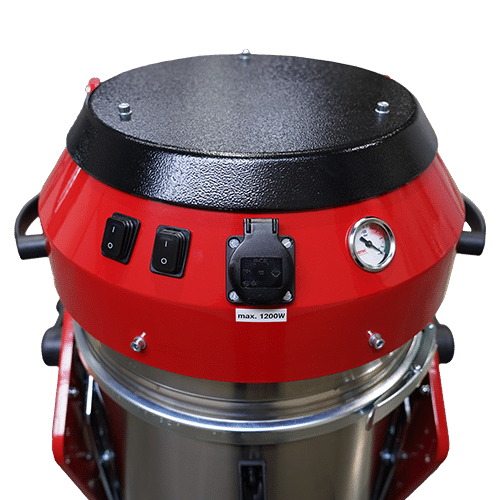

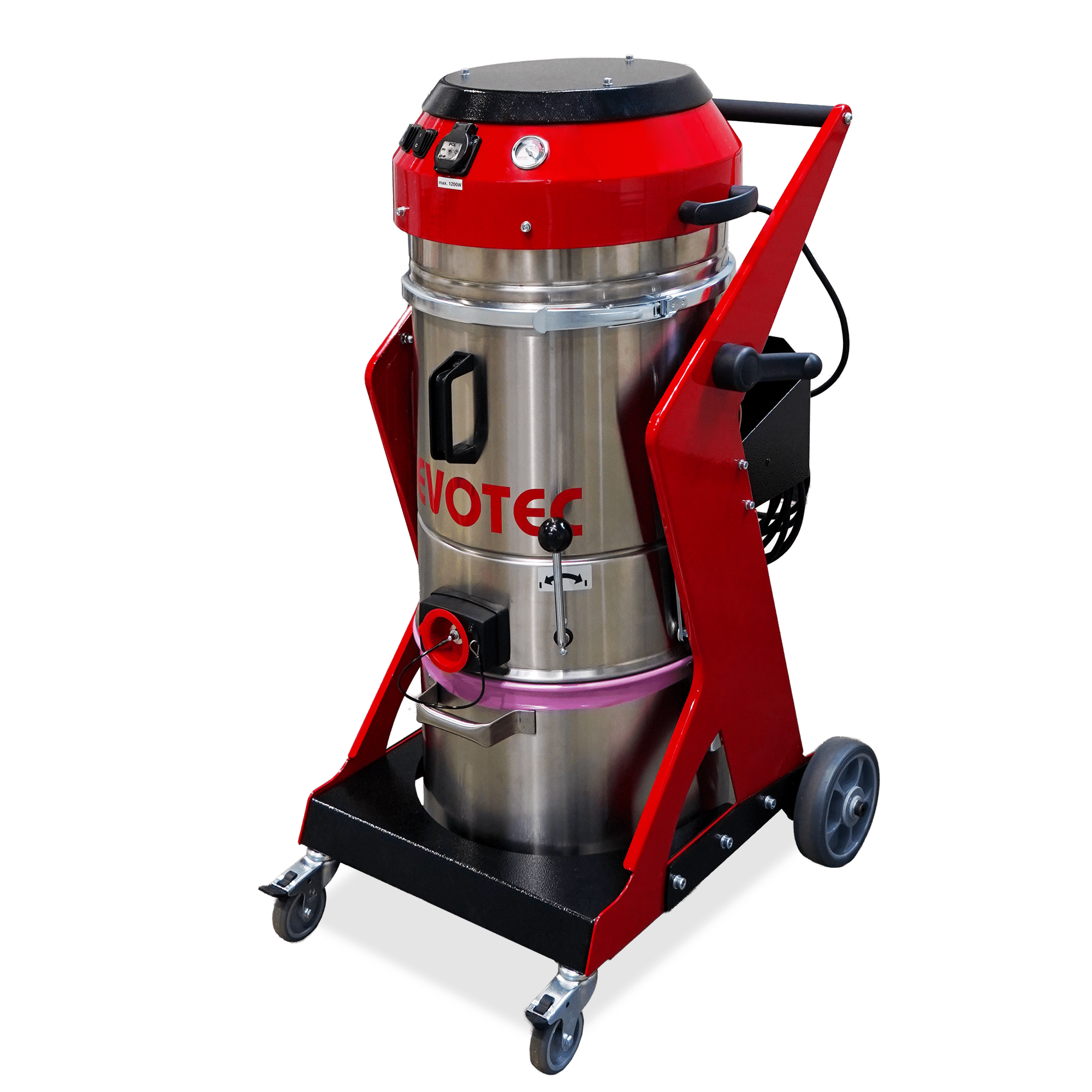

Fig.: ECODustPro 24 with two powerful, individually controllable 1,200-watt motors, a power outlet for connecting power tools, and a vacuum gauge for monitoring the filter

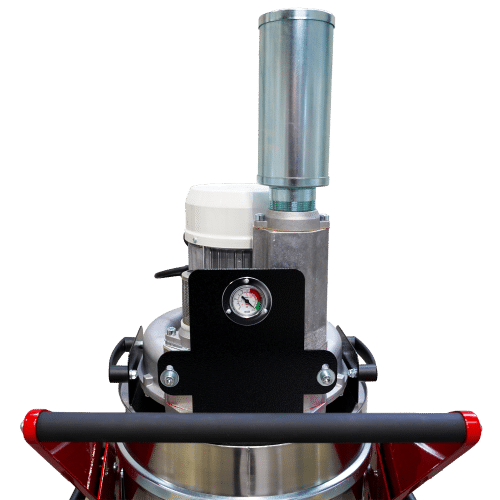

Fig.: ECODustPro 15 pressure gauge for filter monitoring

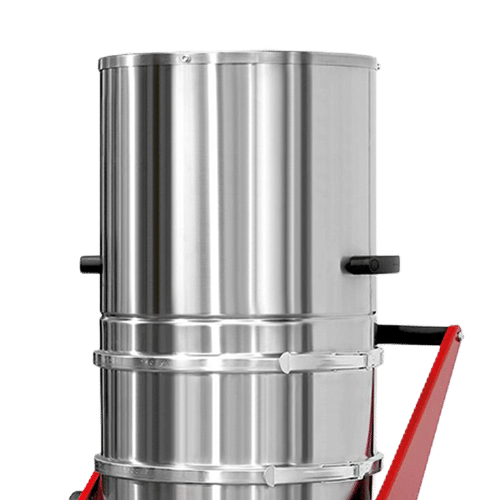

Fig.: ECODustPro 15 Cleanroom Model – Enclosed motor head for use in cleanrooms in accordance with regulations

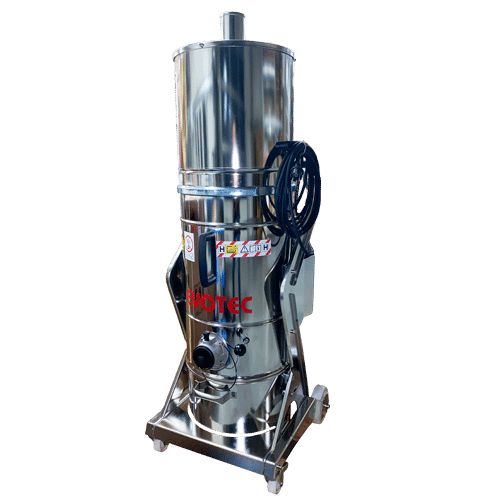

ECODustPro 15 Cleanroom Version VA – Custom-built to meet specific application requirements as requested by the customer
Areas of application
Powerful industrial vacuum cleaner for picking up all types of dry dust
The ECODustPro is a high-performance industrial vacuum cleaner designed to collect all types of dry dust—from coarse debris to fine microparticles (μm).
High-quality components such as well-engineered bypass units, sound-insulated turbo fans, and side-channel compressors ensure reliable performance and high quality standards in industrial applications.
The robust, smooth-running chassis enables high mobility, while the compact, modular design —with product-contacting parts made of high-quality V2A stainless steel —is engineered for durability and ease of use. For demanding continuous-run applications, the ECODustPro is also available with a side-channel blower for 24/7 operation.
A cyclone pre-separator aids in the pre-separation of Fine Dust and coarse material, thereby reducing the load on the filter system.
As is standard with EVOTEC , the ECODustProcan be flexibly tailored to your individual process. The combination filter system is based on dust class M as standard and can be supplemented with a second filter stage of dust class H featuring an H14 absolute cartridge filter to meet increased safety requirements.
An optional cartridge filter upgrade to dust class M with manual atmospheric pressure cleaning is also available.
The waste disposal system can also be configured to suit specific processes —ranging from a V2A stainless steel waste container with a standard volume of 25 liters, through 35- or 50-liter upgrades, to the Longopac system for particularly low-dust waste disposal.
Special versions are also available for specific applications, including models designed for use in cleanrooms, for asbestos applications, and explosion-proof variants.
Included in delivery:
3.5 m suction hose (Ø 40 mm) and crevice tool. Power cord length: 8 m.
Technical data
| Model | ECODust Pro 12 | ECODust Pro 15 | ECODust Pro 24 | |
|---|---|---|---|---|
| Voltage | Volt | 230 | 230 | 230 |
| Motor power | Watt | 1.200 | 1.500 | 2.400 |
| Max. air volume | m³/h | 165 | 220 | 330 |
| Vacuum max. | mbar | 210 | 200/240 | 210 |
| Filter area “M” | m² | 1 | 1 | 1 |
| Filter surface “H” (H14) | m² | 1,7 | 1,7 | 1,7 |
| Dirt container | l | 25 | 25 | 25 |
| Protection class | IP X4 | IP 55 | IP 33 | |
| Sound pressure level | dB(A) | 74 | 72 | 78 |
| Suction connection | Ø mm | 60 | 60 | 60 |
| Dimensions (LxWxH) | mm | 480x600x1050 | 480x600x1380 | 480x600x1050 |
| Weight | kg | 25 | 49 | 25 |
| Staubklasse M | Art. no. | 151-3090 | 151-3093 | 151-3097 |
| Dust class M/type 22 | Art. no. | --- | 151-3094 | --- |
| Dust class H | Art. no. | 151-3091 | 151-3095 | --- |
| Dust class H/asbestos | Art. no. | 151-3092 | --- | 151-3098 |
| Dust class H/type 22 | Art. no. | --- | 151-3096 | --- |
| Upgrade: Cartridge filter | Art. no. | 2x0,5 m²: 053-3002 | 2x0,8 m²: 053-3001 | 2x0,8 m²: 053-3001 |
| Upgrade dirt container 35 liters | Art. no. | 053-4040 | 053-4040 | 053-4040 |
| Upgrade dirt container 50 liters | Art. no. | 053-4041 | 053-4041 | 053-4041 |
| Longopac | Art. no. | 053-4044 | 053-4044 | 053-4044 |
| Clean room design | Art. no. | 054-1171 | 054-1171 | 054-1171 |
Efficient Filtration Technology—Customizable to Your Process
As with all EVOTEC solutions , the filter system can also be flexibly adapted to your individual process .
Dust class M forms the standard and, with a durable bag filter with PUR membrane, ensures reliable separation in daily use .
For applications with increased safety requirements, a second filter stage of dust class H can be added – with absolute cartridge filter H14 for the finest particles and maximum safety.
Optionally, a cartridge filter upgrade of dust class M with manual atmospheric pressure cleaning is also available, which further supports the filter performance and enables long working intervals .
1st filter stage: Dust class M
Durable polyester needle-punched felt filter with a PUR membrane, offering high filtration efficiency for a long service life.
2nd filter stage: Dust class H
Additional H14 absolute cartridge filter for the finest particles and maximum safety
Long filter service life and extended maintenance intervals
Effective, easy-to-use filter cleaning for high filtration efficiency and long operating intervals without interruption.
Regulated Consumables Costs
Vacuum gauge for filter monitoring to maximize filter service life
Tool-Free Filter Replacement
Cleaner and easier filter replacement for employees and maintenance staff thanks to the simple removal of the motor head via a clamping ring system.

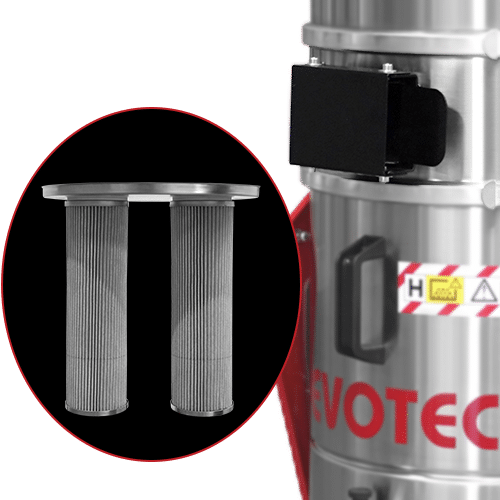

Upgrade: "M" Cartridge Filter System with Backwash
2 aluminum-coated, electrically conductive filter cartridges (1.0 m² or 1.6 m²) with manual atmospheric pressure cleaning
Configurable Waste Disposal System
EVOTEC solutions also focus on adapting the disposal system to your individual process . Depending on the application, volume of material being vacuumed, and disposal requirements, various designs and extensions are available.
From the ergonomic dirt container system with various volumes to the dust-free Longopac disposal system , the solution can be flexibly configured and optimally adapted to your workflows .
Ergonomic Waste Container Disposal System
Lever mechanism for conveniently lowering the V2A stainless steel debris container—with smooth-rolling casters for easy disposal of the vacuumed material
- Standard: 25-liter waste container
- Upgrade: 35-liter dirt container
- Upgrade: 50-liter dirt container
Upgrade: Longopac Waste Disposal System
A 20-meter plastic tube with cable ties for sealing enables efficient, low-dust disposal. Features lockable safety doors and rear storage space.
ATEX-Compliant Explosion Protection

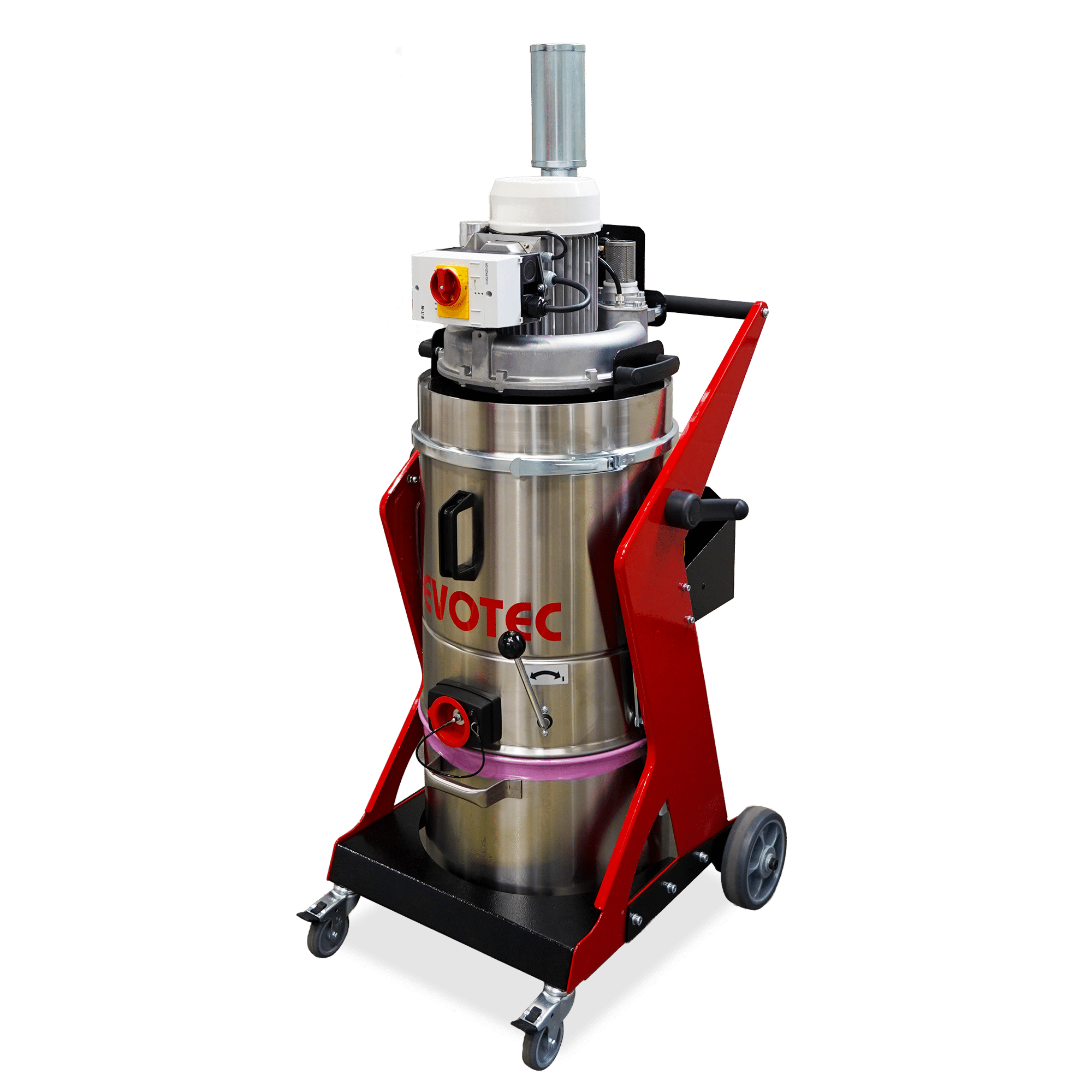

ECODustPro 15 Upgrade: ATEX Zone 22 Explosion Protection
Designed with electrostatic-dissipative equipment and components for safe extraction in Zone 22
TRGS 519-Certified Asbestos Removal
ECODustPro 12/24: Asbestos-rated model for demolition and renovation work
DGUV-certified in accordance with TRGS 519 for the extraction of carcinogenic asbestos dust.
