EP 312-100-WB “H/EX Zones 1, 2, 21, 22”
Combined Filter System
H14 cartridge filters (2 m²) and specialty VA filters (1 m²)
Compressed Air Operation
Suitable for use in EX zones 1, 2, 21, and 22
Fully equipped with safety technology

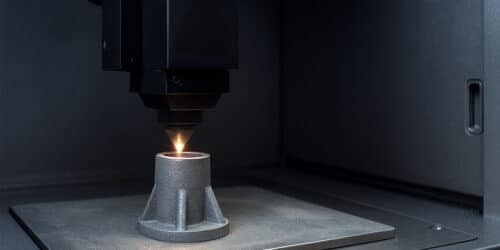

For example, for additive manufacturing - Many years of experience with and for leading manufacturers in the 3D printing industry
Complies with VDI 3405
For maximum process reliability
Inert Process
Liquid bath for the passivation of potentially explosive and reactive dusts (e.g., aluminum, titanium)
Submit a no-obligation inquiry now—see below for all the details. Or schedule a personal consultation —we’d be happy to help!
Areas of application
| Model | EP 312-100-WB | |
|---|---|---|
| Drive | 2 compressed air ejectors Consumption: 56 m³/h (at 4 bar flow pressure) Operating pressure: 6-10 bar" |
|
| Max. air volume | m³/h | 300 |
| Vacuum | mbar | 200/280 max. |
| Filter area VA filter | m² | 1,5 |
| Filter area “H” (H14) | m² | + 2,0 |
| Complete dirt container | l | 100 |
| Min. dirt container level | l | 25 |
| Max. dirt container level | l | 35 |
| Sound pressure level | dB(A) | 76 |
| Suction connection | Ø mm | 40 Kamlock-Connection |
| Dimensions (LxWxH) | mm | 830 x 680 x 165 |
| Weight | kg | 100 |
| Version | Art.-No. | 053-0083 |
*) Operating data including standard filter equipment in factory condition without further options such as activated carbon filter, spark trap, duct, etc. The effective output depends on the respective operating point, which is determined by the output setting, pipe dimensions (Ø, length) and detection at the intake point.
**) Country-specific requirements must be checked for recirculation operation.
***) Other voltages on request
High-Performance, Compressed-Air-Powered Inert Safety Vacuum with Water Bath
High-performance industrial vacuum cleaner with a liquid-bath separator integrated into the dust collection bin for extracting explosive, reactive, and settled metal dusts such as aluminum, copper, titanium. In this inert process, the explosive and reactive material being extracted is passivated by the liquid bath.
Critical Fine Dust particles are bound to a liquid separation medium (e.g., water)— in accordance with VDI 3405.
Large wet separator tank with a safety device for passivating the media drawn in:
Minimum level = 25 liters
Maximum Level = 35 liters
Simple and fast optical level monitoring (minimum and maximum fill levels) to ensure an adequate liquid level.
The degassing valve prevents the buildup of gases and vapors.
Additional special VA filters plus an H14 filter cartridge for reliable filtration in dust class H according to EN 60335-2-69 and EN 62487.
Compressed Air Ejectors – High-Performance Compressed Air Version. Note: External compressed air required! (Operating pressure 6–10 bar)
Convenient lowering of the dirt container for easy disposal of the debris.
Suction elbow with Kamlock coupling for secure connection of the suction hose.
Your partner for industrial extraction solutions
EVOTEC develops extraction systems and industrial vacuum cleaners for industrial applications and realizes application-specific special solutions in addition to near-series devices. Our systems are designed for process reliability, durability and individual requirements.
Commissioning
Maintenance
Submit a non-binding inquiry or schedule a personal consultation—we’d be happy to help!
