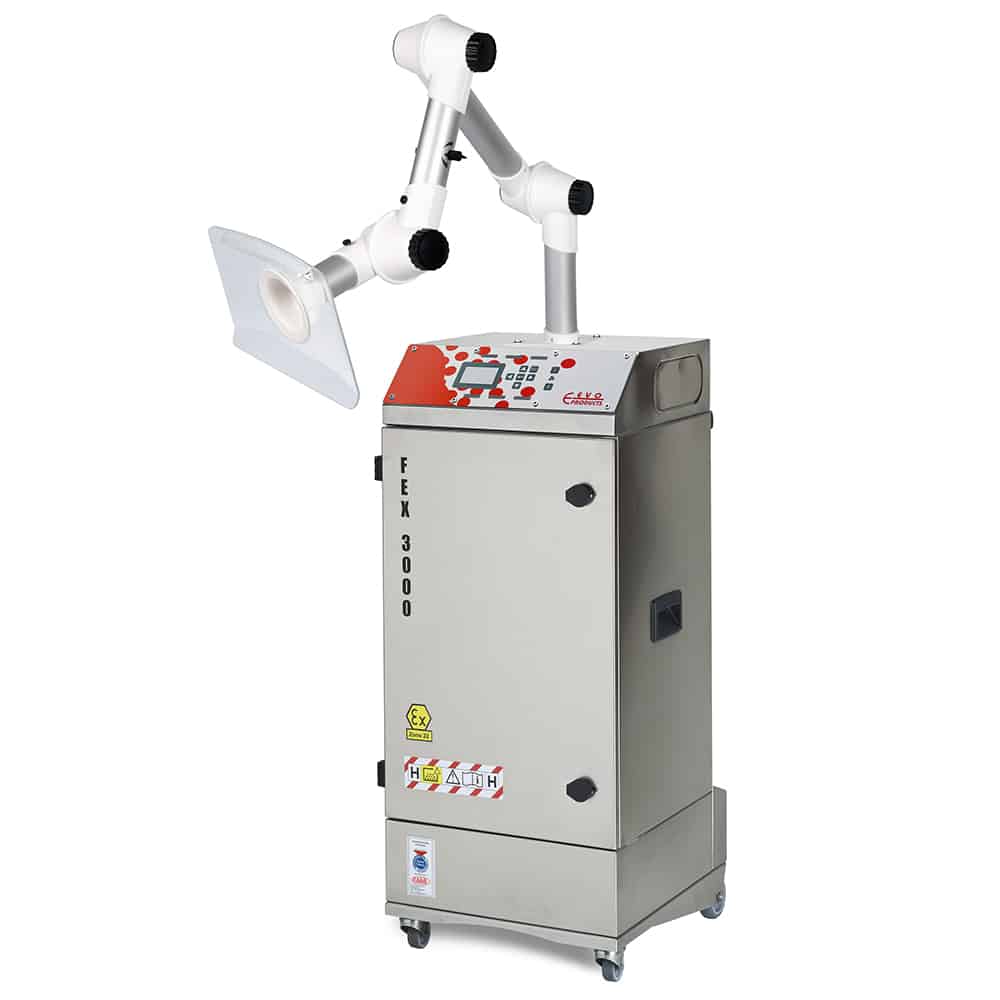

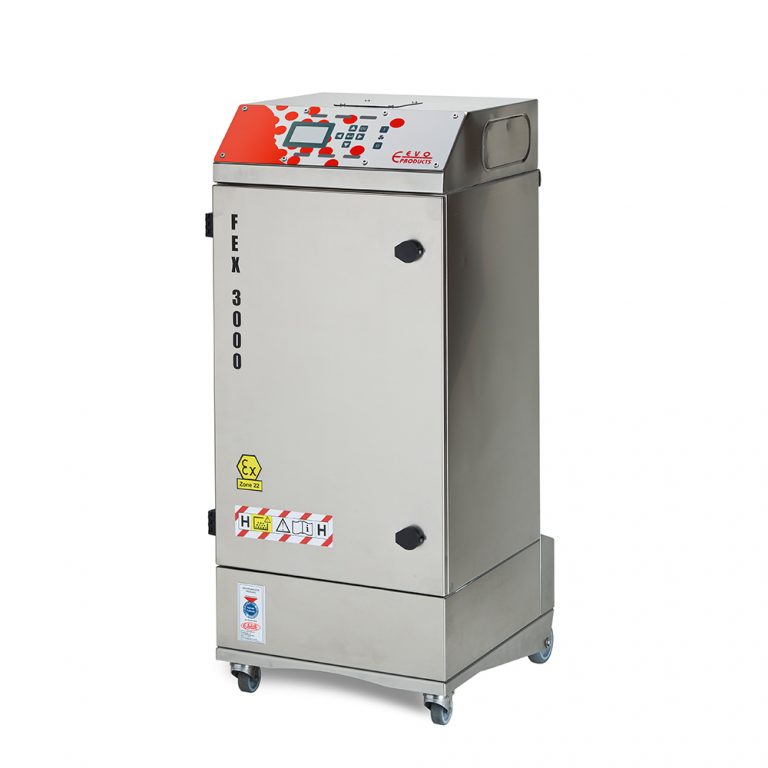

FEX 3000 VA welding fume, soldering fume and dust extraction system
- Powerful EC blower, suitable for continuous operation,
- Large air volume, infinitely variable volume flow control
- Modern control technology with display of appliance status and error messages, connection for on/off remote control
- Reliable filtration thanks to graduated combination filter system
- available in the “EX” or“W3” versions
High mobility thanks to smooth-running castors with parking brake
Double suction connection 2 x Ø 50mm - rear, right or left
Sturdy, ergonomic push handle
Stainless steel housing protection class IP 55
Bottom-mounted turbine - low center of gravity

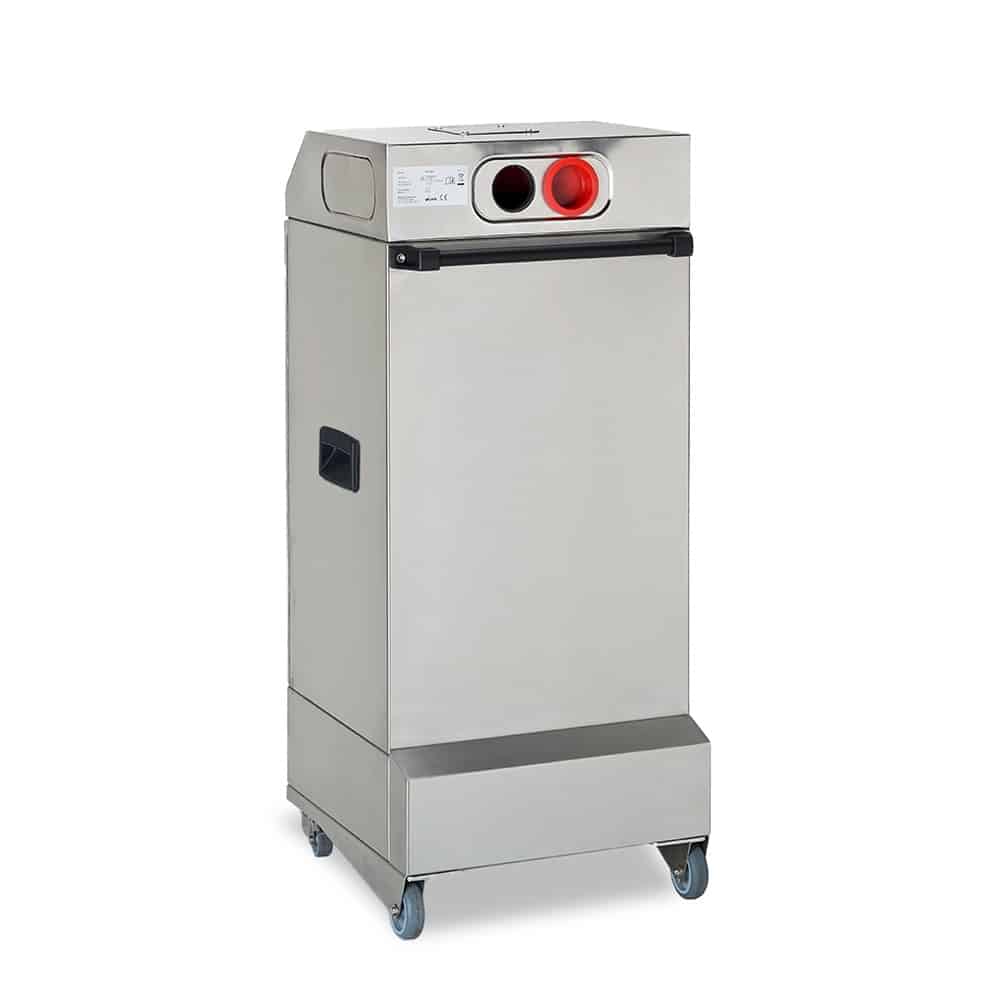

Exhaust air opening and electrical connections protected - Removable protective cover
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Process-adaptable extraction system for extracting fumes, vapors or airborne dust

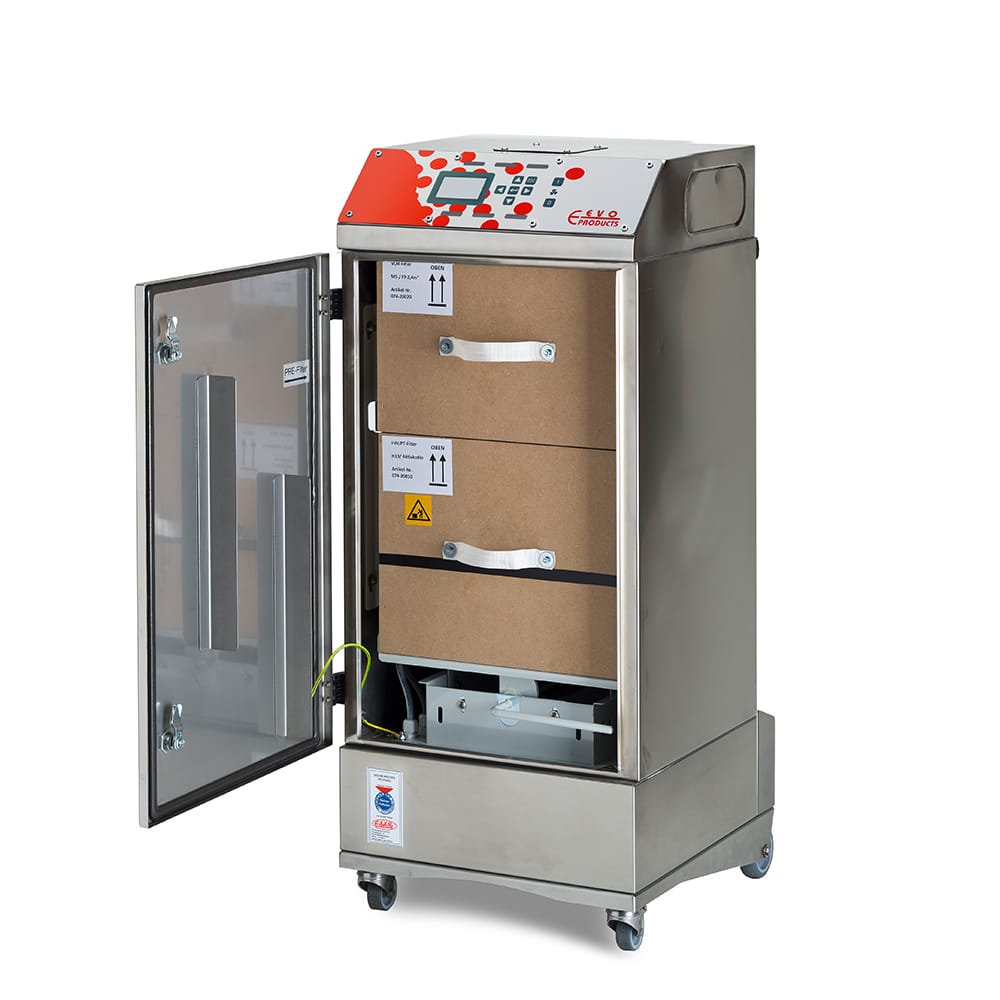

High quality standards – suitable for 3-shift operation. Convenient filter change thanks to 3-cassette system with individually removable filter cassettes. Reliable filtering out of suspended particles thanks to the use of a graduated combination filter system. Activated carbon in the main filter reduces odors in the exhaust air.
For extracting laser fumes, welding and soldering fumes, cutting fumes and various vapors and solvents. Continuous duty EC blowers for extracting large volumes of air to capture airborne dust. Extraction with up to two hoses or extraction arm, hose connection at the rear, top or sides.
Modern control technology enables stepless regulation of the extraction power during operation. Easy and convenient to adapt to individual requirements via intuitive control panel. Clear graphic display and large, multi-colored LEDs for a quick overview of device status, settings or sources of error.
Stainless steel housing (VA 1.4301)
EX-protected in accordance with ATEX for safe extraction in Zone 22: Electrically conductive device equipment and device parts
W3 version – IFA-approved: including expanded metal filter as spark arrester to prevent fire hazard.
Ex-protected version Included in delivery:
Initial equipment set Filter according to individual configuration.
W3 version-Included in the scope of delivery:
Initial equipment set of filters:
– Storage filter M5/F9
– HEPA filter H13/H14
– Activated carbon filter
