EVOTEC-container extraction unit:
The complete solution for compliant asbestos removal in accordance with TRGS 519
For the safe removal, filtering and disposal of asbestos fibers and dusts
Efficient asbestos removal directly on site - with the mobile container extraction unit

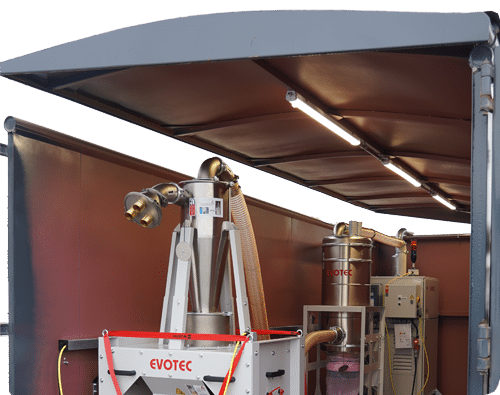

Maximum safety and compliance with all legal regulations are crucial when carrying out asbestos removal work. With the mobile container extraction unit, a flexible complete solution is now available that has been specially developed for use on construction sites. Like every EVOTEC solution, it can be individually adapted to your needs and requirements. The container can be transported directly to the renovation site and contains all the necessary extraction and filter equipment to carry out asbestos work professionally, efficiently and in accordance with regulations – compact, mobile and ready for immediate use.

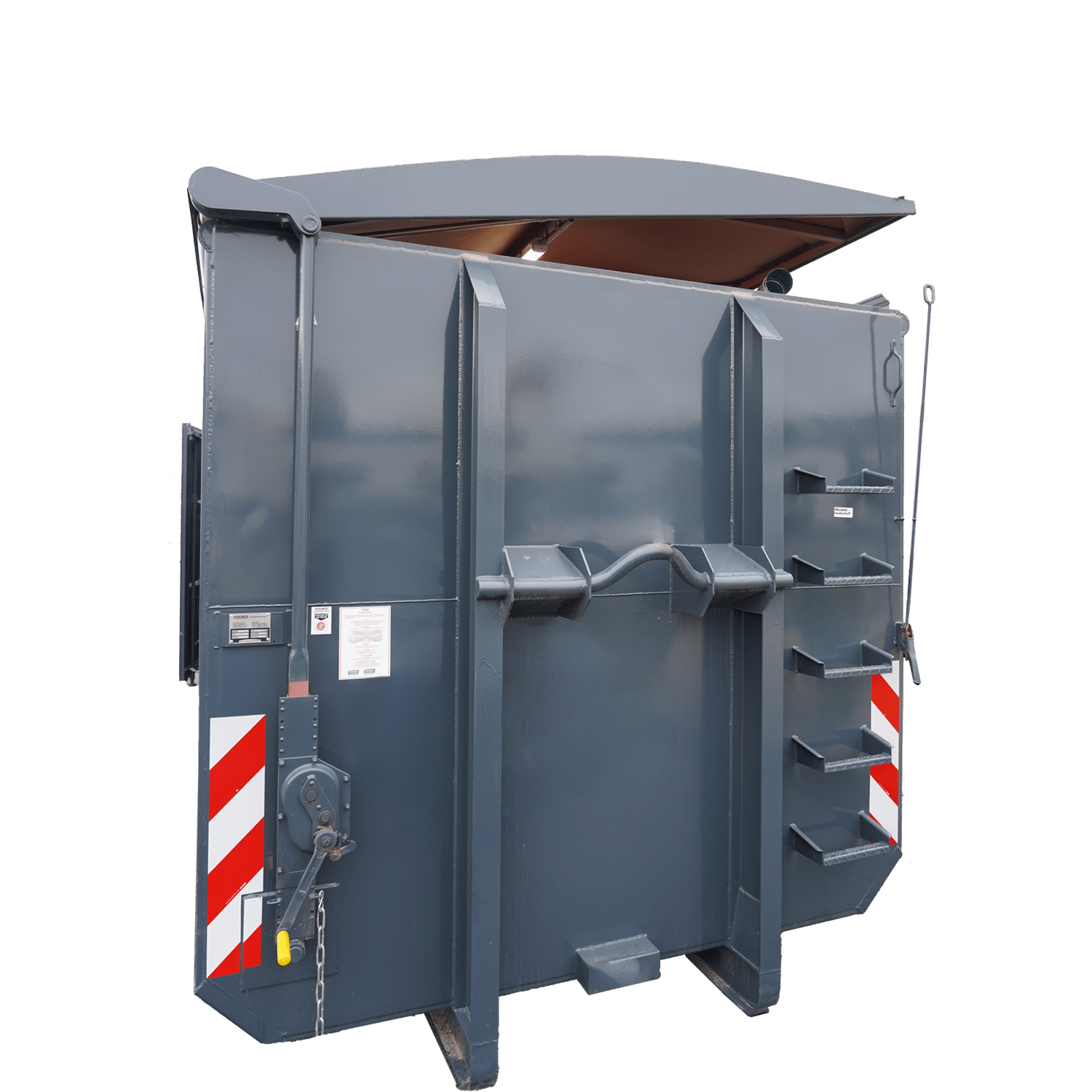

Liftable roof for exhaust air
Cyclone pre-separator for BigBag filling
Filter pre-separator (dust class M) with Longopac disposal system
Vacuum generator with H-filter storage cassette
Exhaust air pipe Vacuum generator
Smooth-running crank mechanism for raising the roof
Locking
Technical data
| Modell | Asbest-Container-Absaugung | |
|---|---|---|
| Spannung | V | 400 |
| Netzfrequenz | Hz | 50 |
| Phase | ~ | 3 |
| Motorleistung | W | 12.500 |
| Max. Luftmenge | m³/h | 1.100 |
| Betriebs-Luftmenge | m³/h | 750 |
| Mindestvolumenstrom **) | m³/h | 420 |
| Max. Unterdruck | mbar | 420 |
| Betriebs-Unterdruck | mbar | 200 |
| Filterfläche „M“ | m² | 3 x 5,0 m² = 15,0 m² (PTFE-Filterpatronen) |
| Filterfläche „H“ (H14) | m² | 20 m² |
| Entsorgung | 20 m Longopac-Endlossack am Filter-Vorabscheider 1 m³ BigBag am Zyklon-Vorabscheider |
|
| Abmessungen L x B x H | mm | Variiert je nach Einbau-Art |
| Gewicht | kg | Variiert je nach Einbau-Art |
| Sauganschluss Schlauch | Ø mm | 1 x 100 oder 3 x 50 |
| Abluftanschluss | Ø mm | 100 |
| Schalldruckpegel *) | dB(A) | Turbine 80 dB(A) Kompressor 94 dB(A) |
| Schutzart/ Schutzklasse | IP 54 | |
| Betriebs-Temperatur | °C | 5 bis 40 |
| Betriebs-Luftfeuchtigkeit | % | 10 bis 70 (nicht kondensierend) |
*) Measurement according to DIN EN ISO 3744 at a distance of 1 m from the device surface in free field at max. volume flow (tolerance ± 2 dB(A). Operating data including standard filter equipment in factory condition without further options such as spark trap, etc. The operating point varies due to power setting and duct design (Ø, length) as well as detection at the intake point.
**) Minimum volume flow at 20 m/s
Modular extraction technology for maximum safety and flexibility
Thanks to its modular design, the system can be individually adapted to different requirements – whether in containers, in vehicle superstructures or in stationary systems. As a result, it not only offers maximum occupational safety during asbestos removal in accordance with TRGS 519, but also maximum efficiency and operational safety when extracting hazardous dust.
The container extraction unit consists of several coordinated modules:

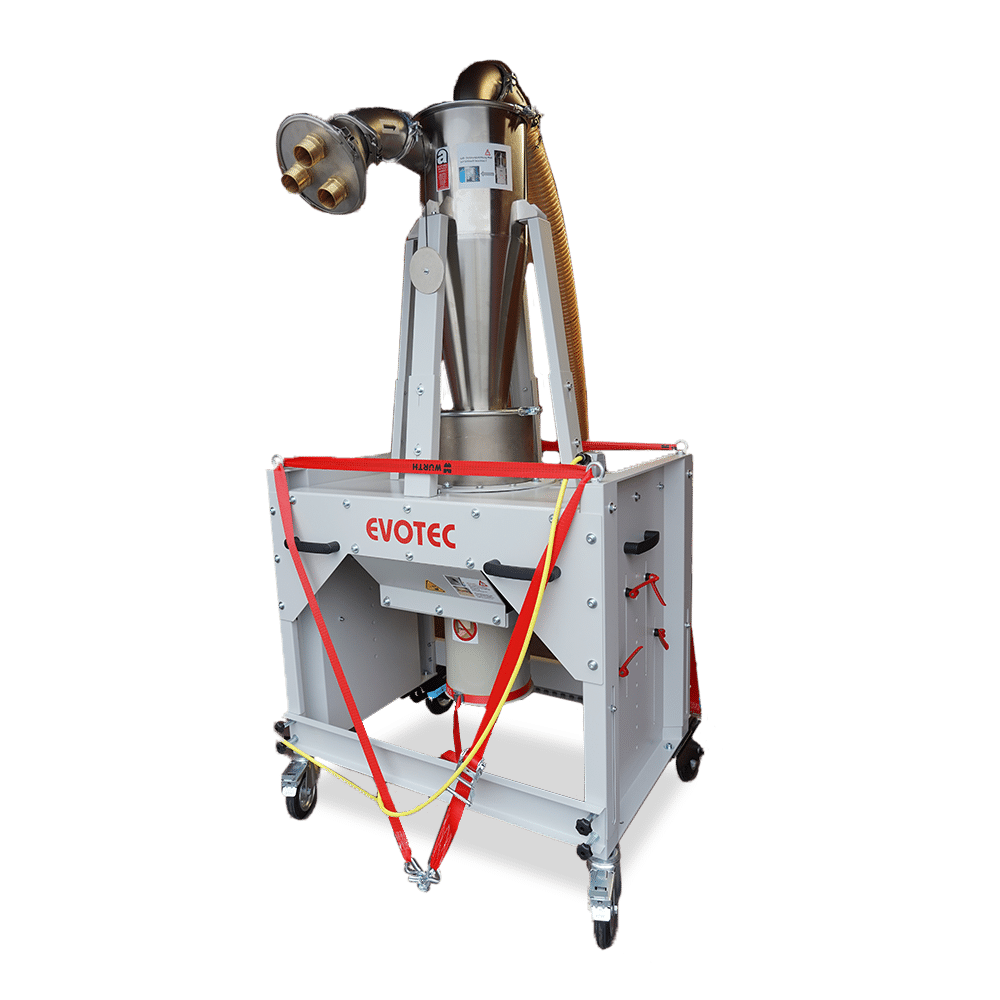

Cyclone pre-separator for BigBag filling
Pipe bend connection 3 x Ø 50 mm or 1 x Ø 100 mm for hose to dust generator (e.g. milling machine)
Cyclone container
Connecting hose Ø 100 mm to the filter pre-separator
Rotary valve for continuous dust discharge
Eccentric clamp for loosening/fixing the cyclone unit
Filler neck for BigBag sack
Swivel castors with parking brakes
The cyclone pre-separator is the first module for efficient separation of coarse particles and low-dust filling of BigBags. It comprises the
High accumulation volume for continuous work processes
BigBag volume: Standard BigBag approx. 1 m³ (standard dimensions approx. 85 × 85 × 75 cm)
Safe and low-dust disposal through rotary valve
Continuous dust discharge via robust rotary valve with automatic fill level monitoring
Flexible integration and easy handling
Swivel castors with parking brakes for mobile positioning, eccentric clamp for quick fixing and secure BigBag fastening
Variable suction connection
Suction connection for 1 x Ø 100 mm or 3 x Ø 50 mm hose

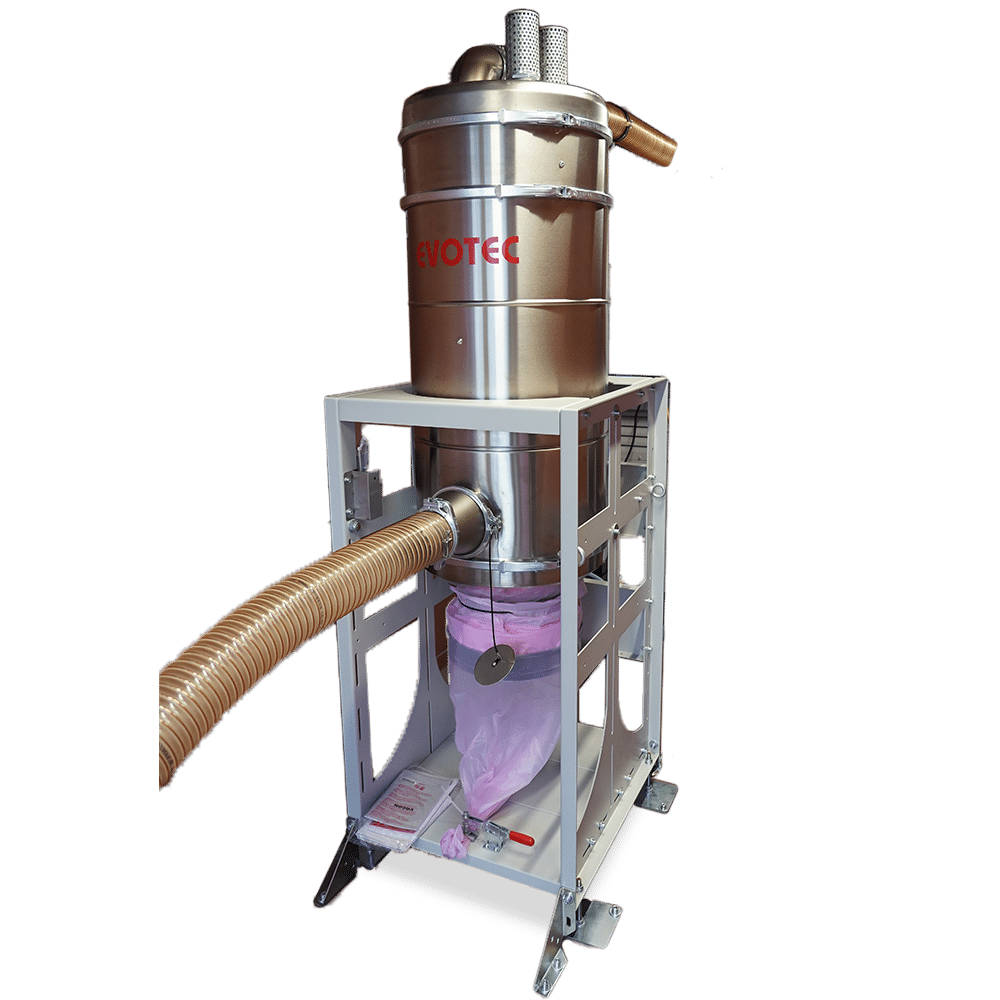

Filter pre-separator (dust class M)
Vacuum relief valves
Cleaning chamber for filter cartridges
Connecting hose Ø 100 mm to the vacuum generator
Filter chamber with filter cartridges, dust class M

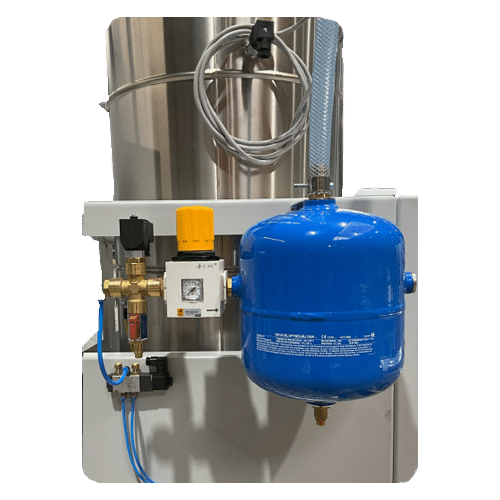

Reverse side:
- Suction pressure sensor
- Compressed air connection
- Pressure reducer
- Compressed air reservoir
Hopper with pneumatic flap
Connecting hose Ø 100 mm to the cyclone pre-separator
Longopac disposal bag
The filter pre-separator takes over the separation of finer dusts after the cyclone stage. With three high-quality PTFE cartridge filters, automatic compressed air cleaning and low-dust Longopac disposal, this module ensures consistently high suction power and safe handling of even hazardous dusts.
Highly efficient filter performance
Three PTFE filter cartridges dust class M (15 m² total area) with 99.9 % separation efficiency - ideal for hazardous, dry dusts
Automatic compressed air cleaning for constant performance
Electropneumatic compressed air cleaning at intervals - extends filter service life and reduces maintenance work and material costs
Low-dust disposal with Longopac system
20 m endless bag for clean working and easy disposal in accordance with legal requirements
Easy maintenance and safe operation
Quick filter change via clamping rings, integrated differential pressure monitoring, PPE-compatible maintenance access

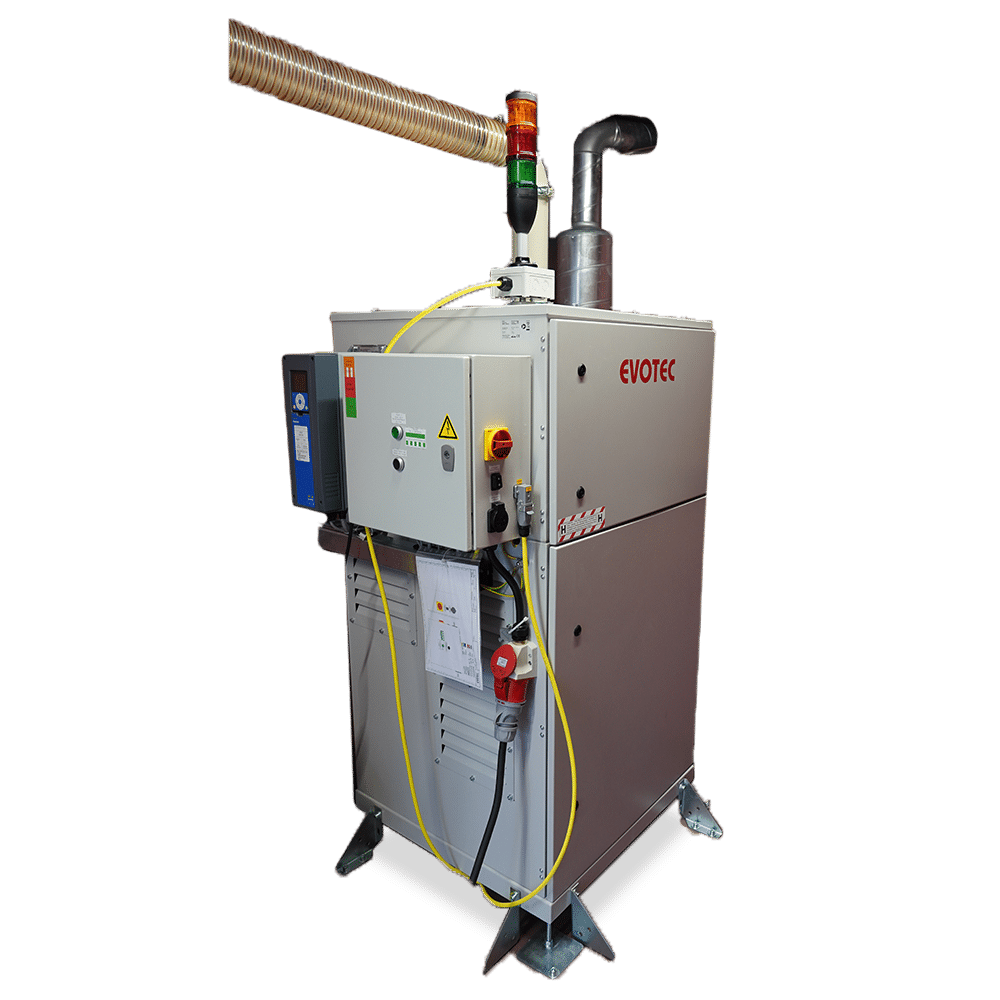

Vacuum generator (dust class H)
Connecting hose Ø 100 mm to the filter pre-separator
Signal traffic light
Exhaust air pipe
Silencer
Filter chamber
Frequency inverter with display control
Vacuum generator
Switch cabinet
The vacuum generator is the heart of the modular extraction unit. It generates the vacuum for the entire extraction process, regulates the power via a frequency converter (PID control) and
Constant suction power thanks to intelligent control
PID volume flow control keeps the set negative pressure constant - regardless of the number of open suction points
Maximum filtration for the highest safety requirements
H filter cassette with 20 m² filter surface - separation efficiency up to 99.995 % for dust class H and asbestos in accordance with TRGS 519
Robust and maintenance-friendly industrial design
Powerful 12.5 kW motor, silencer for noise reduction, easy access to all maintenance components
Simple operation and status monitoring
Integrated signal light, START/STOP button and display for monitoring operating and fault messages
