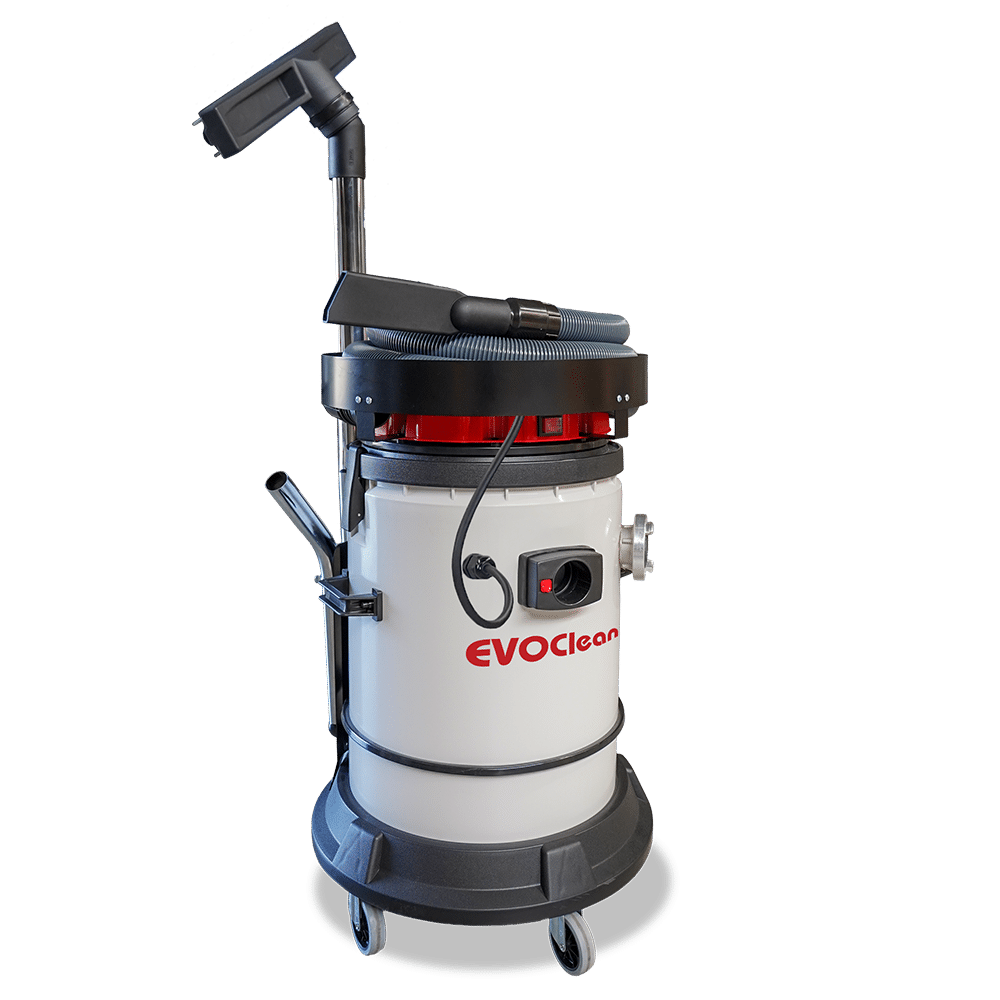

EVO 415–429 Basic Pump
High-Performance Liquid Vacuum Cleaners with Stainless Steel Submersible Pumps
High-Performance Stainless Steel Submersible Pump
Suction and pumping from the tank in a single operation, with flow rates ranging from up to 13,000 or 16,000 liters per hour.
Single- or Twin-Engine Version
High-performance units with one or two 1,080-watt motors, Dual-Stage. Twin-motor version with individually controllable motors.
Compact Storage & Transport
Practical hose and pipe mounts for the compact for transport to the intended area of operation.
Rugged operation under adverse conditions
Flexible five-wheel chassis and a removable, impact-resistant motor head for rugged use under adverse conditions.
Technical data
| Model | 415 Basic Pump | 429 Basic Pump | |
|---|---|---|---|
| Voltage | Volt | 230 | 230 |
| Motor power | Watt | 1.080 | 2 x 1.080 |
| Air flow max. | m³/h | 210 | 420 |
| Pump rate | l/h | 13.000 | 16.000 |
| Max. flow heigth | m | 9 | 8 |
| Max. particle size | mm | 5 | 5 |
| Vacuum max. | mbar | 240 | 240 |
| Weight | kg | 25 | 27 |
| DimensionsL x B x H | mm | 580 x 580 x 900 | 580 x 580 x 900 |
| Dirt Container | l | 72 | 72 |
| Art.-No. | 141-4061 | 141-4081 |
Also interesting: 429 Resistant Pump
Sturdy, chemical-resistant 85-liter plastic container—ideal for extracting heavily contaminated water.
Your benefits in detail:

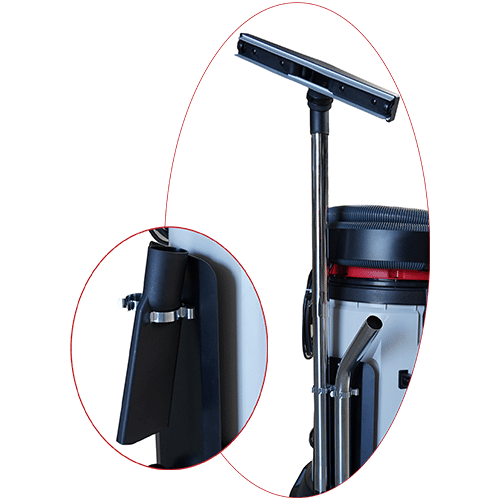

Nozzle and hose holders ensure compact storage, easy transport, and quick accessory changes right on the vacuum cleaner.

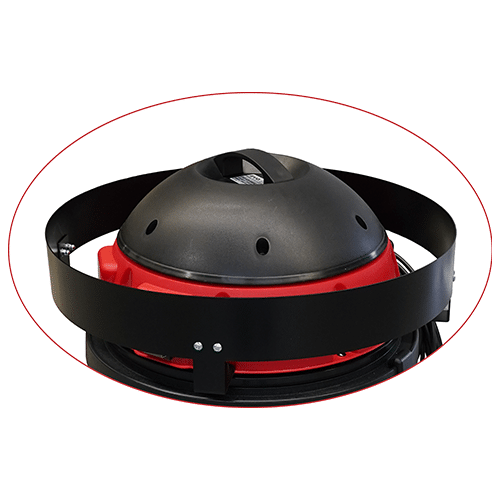

Hose holder ring for compact storage and easy transport of additional lengths of hose for flexible extension during use.
Stortz/C coupling with 1 1/2″ female thread for attaching the wastewater hose—suction and pumping in a single process

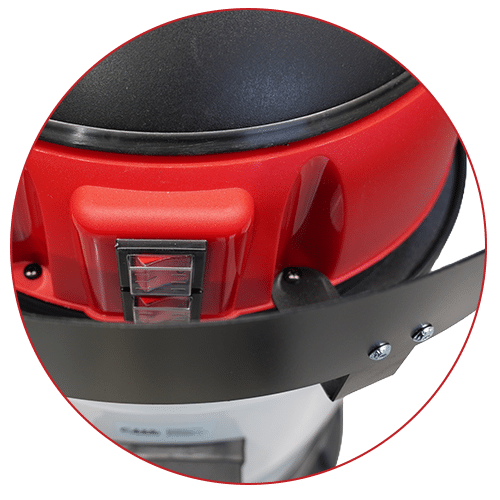

429 Basic Pump with two individually controllable 1,080-watt motors
Accessories & options
Included in delivery:
Accessory set: Ø 40 mm, 3.5 m PP suction hose, and PP crevice tool
Additional Accessories & Options:
For Optimal Use
