FEX 3000.1/ .2: Welding fume, soldering fume and dust extraction
Optional suction hose connection Ø 50 mm or Ø 80 mm/
Connection option for suction arm
Intuitive control panel with optimized control software - adaptable to your extraction process

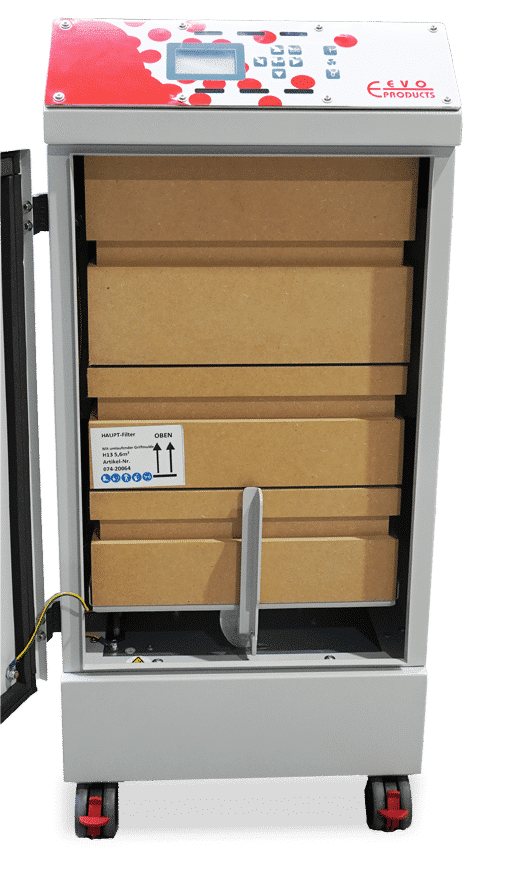

Easily accessible filter chamber with configurable combi-filter system - for user-friendly and low-contamination filter changes
High mobility thanks to smooth-running castors with parking brake

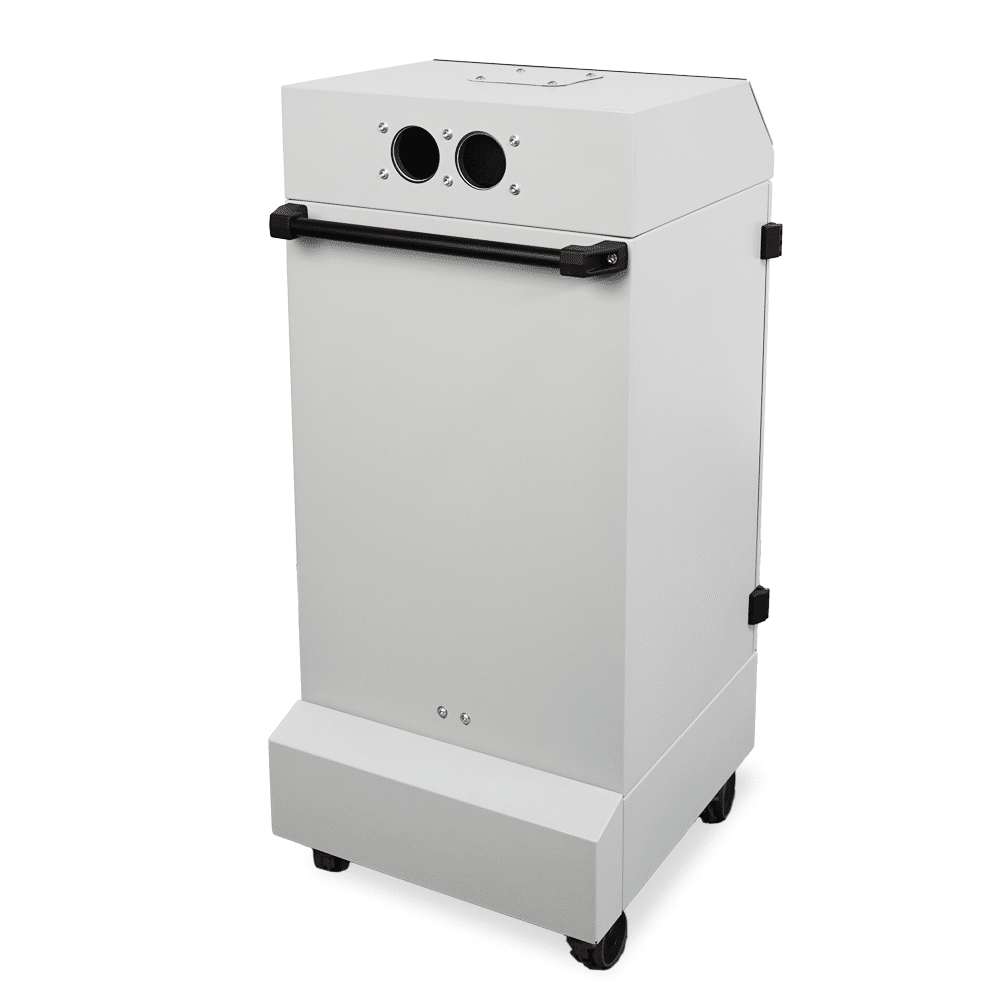

Double suction connection 2 x Ø 50mm at the rear - or single at the top
Powder-coated housing - protection class IP 55
Bottom-mounted turbine - low center of gravity
Exhaust air opening and electrical connections protected - Removable protective cover
Ergonomic push handle

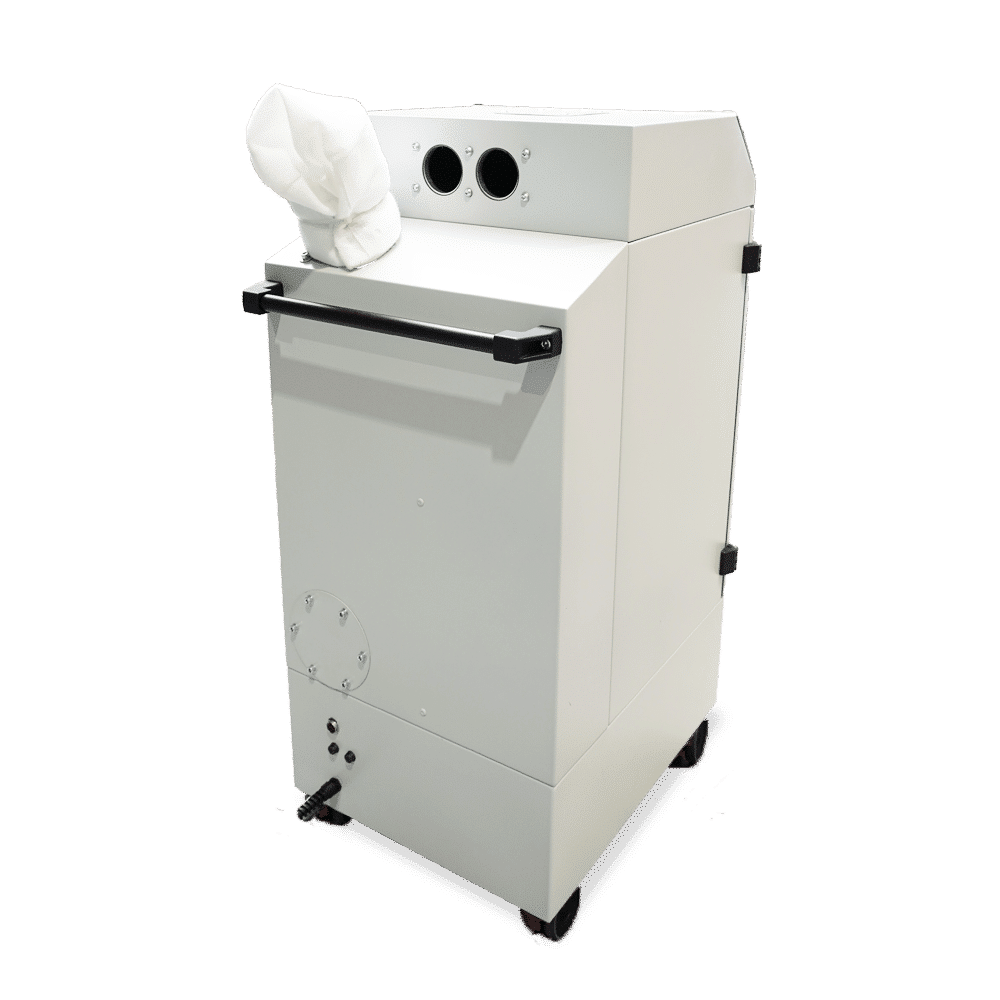

Outlet diffuser or connection for exhaust air Ø 100 mm
Silencer permanently installed at the rear - for the quietest possible extraction
8-pin socket for
Remote ON/OFF
Electrical connection
- Powerful EC blower suitable for continuous operation (24/7), large air volume, infinitely variable volume flow control
- Modern control technology with display of device status and filter messages
- Reliable filtration through multi-stage combined filter system
- Connection for on/off remote control
- FEX 3000.2 with silencer and air outlet diffuser for extra low sound pressure level
Configure your extraction system now – you will find all the details below. Or let us advise you personally – we will be happy to help you!
Areas of application
Battery cell production
Automotive
EX-protected extraction
Electronics industry
Fine dust extraction
Laser fume extraction
Food industry
Pharmaceuticals/ Chemistry
Polishing
Fume extraction
Sanding dust extraction
Welding/soldering fume extraction
Packaging industry
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Process-adaptable extraction system, suitable for welding fumes, soldering fumes, vapors or airborne dusts
High quality standards – suitable for 3-shift operation.
Convenient filter change thanks to 3-cassette system with independently replaceable filter cassettes.
Reliable filtering out of suspended particles thanks to the use of a 3-stage combination filter system.
The activated carbon filter reduces odors in the exhaust air. For extracting laser fumes, welding and soldering fumes, cutting fumes and various vapors and solvents.
Continuous duty EC blowers for extracting large air volumes to capture suspended dusts.
Extraction with up to two hoses or one extraction arm, hose connection at the rear or top.
Easy and convenient to adapt to individual requirementsvia intuitive control panel.
Clear graphic display and large, multicolored LEDs for a quick overview of device status or settings.
Standard version:
Initial filter equipment set consisting of:
– Empty storage filter frame with F9 insert + M5 insert
– HEPA HEPA filter H13/ H14
– Activated carbon filter
Upgrade:
EX-protected in accordance with ATEX for safe extraction in Zone 22: electrostatically dissipative device equipment and device parts .
Filter initial equipment set(with earthing lug) consisting of:
– Expanded metal filter
– Storage filter empty frame with F9 insert + M5 insert
– HEPA HEPA filter H13/ H14
– Activated carbon filter
Upgrade:
W3-compliant design incl. expanded metal filter as spark arrester to prevent fire hazard.
Filter initial equipment set consisting of:
– Expanded metal filter
– Empty storage filter frame with F9 insert + M5 insert
– HEPA HEPA filter H13/ H14
– Activated carbon filter
Upgrade:
ESD version – EX-protected with ESD powder coating and ESD castors.
Initial filter equipment set consisting of:
– Expanded metal filter
– Empty storage filter frame with F9 insert M5 insert
– HEPA HEPA filter H13/H14
– Activated carbon filter
HEPA filter for maximum filtration and safety
HEPA HEPA filters and adsorption filtersconsist of a sturdy MDF box with seal and are fully incinerable. Thanks to the separate design, you can configure your filter system to suit the application and replace it separately depending on the load.
As a storage filter, an empty frame can be configured according to your requirements with a wide range of suitable filter inserts. The W3-compliant version requires the use of an expanded metal filter as spark protection. (In combination with empty storage filter frame + filter insert + expanded metal filter).
Discover your individual combi filter system
Adapt the 3-stage combination filter system specifically to your extraction process.
Storage filter empty frame
Standard version:
F9 filterand M5 insert
Free internal height = 95 mm
Total height = 240 mm
Dissipative version:
F9 filter, M5 insert and expanded metal filter
Free internal height = 80 mm
Total height = 146 mm
Suitable inserts for empty storage filter frames:
Expanded metal filter as spark guard, height 15 mm
G4 fleece mat, height 14 mm
G4-Z-Line 0.3 m² - cardboard frame, height 48 mm
G4-Z-Line 0.6 m² - cardboard frame height 96 mm
M5 filter 0.8 m² - cardboard frame, height 48 mm
F9 filter 2.2 m² - plastic profile, height 48 mm
HEPA filter
H13/H14 Cassette
5.6 m² filter surface,
Height 146 mm with seal
Adsorption filter
Activated carbon cassette
approx. 6 kg AK,
Height 146 mm with seal
User-friendly and low-contamination filter change
The combination filter system of the FEX 3000.1/ .2 welding and soldering fume extraction unit makes it easy to change filters thanks to the easily accessible filter chamber.
Optimized control technology - adaptable to your extraction process
Powerful extraction technology requires optimum control technology, which is why our new FEX series is equipped with configurable controls that can be adapted to your extraction process. Operated via a clear and intuitive control panel:
Operating status, faults and warnings can be recognized at a glance by LED fields.
Intuitive control panel
Stepless regulation of the suction power during operation
Clear display to show the operating status and messages
Control technology: An important safety factor for the extraction system
- Test routine for motor, buttons, LEDs and more ensures all-round functionality for maximum safety
- Comprehensive types of fault messages and filter status messages - with pictograms and error codes
- Error log for traceability - to provide the best possible service
- Filter fill level is displayed in real time - separately for each filter
- And much more...
The control technology can also be adapted to your needs
- Different user roles with different authorizations and individual passwords
- Real-time fill level display individually adjustable to your suction material - for maximum accuracy
- Individually adjustable run-on time to ensure the highest possible extraction rate
- Alarm configuration according to the relevance in your extraction process
- And much more...
Connection for on/off remote control
It can also be connected to your existing controllers or devices. An 8-pin socket provides the convenient option of implementing a remote on/off switch. In addition, the operating status and signals from fault messages can be forwarded potential-free or with 24 V.
Gas and particle sensor for even more safety during extraction
The gas and particle sensor upgrade completes the maximum safety and efficiency requirements for your extraction process.
- Reports filter breakage - can initiate immediate shutdown
- Sensitivity and much more configurable in the user menu
- Test function to ensure functionality
- And much more...
