EP 1136
Mobile industrial vacuum cleaner – 230 volt
Powerful industrial vacuum cleaners with durable V2A dirt container for vacuuming all kinds of dirt. Dry dusts – from coarse dirt to microparticles (μm)
- Perfect filter technology for safe extraction
- High suction power – two hoses can also be used with Y-piece

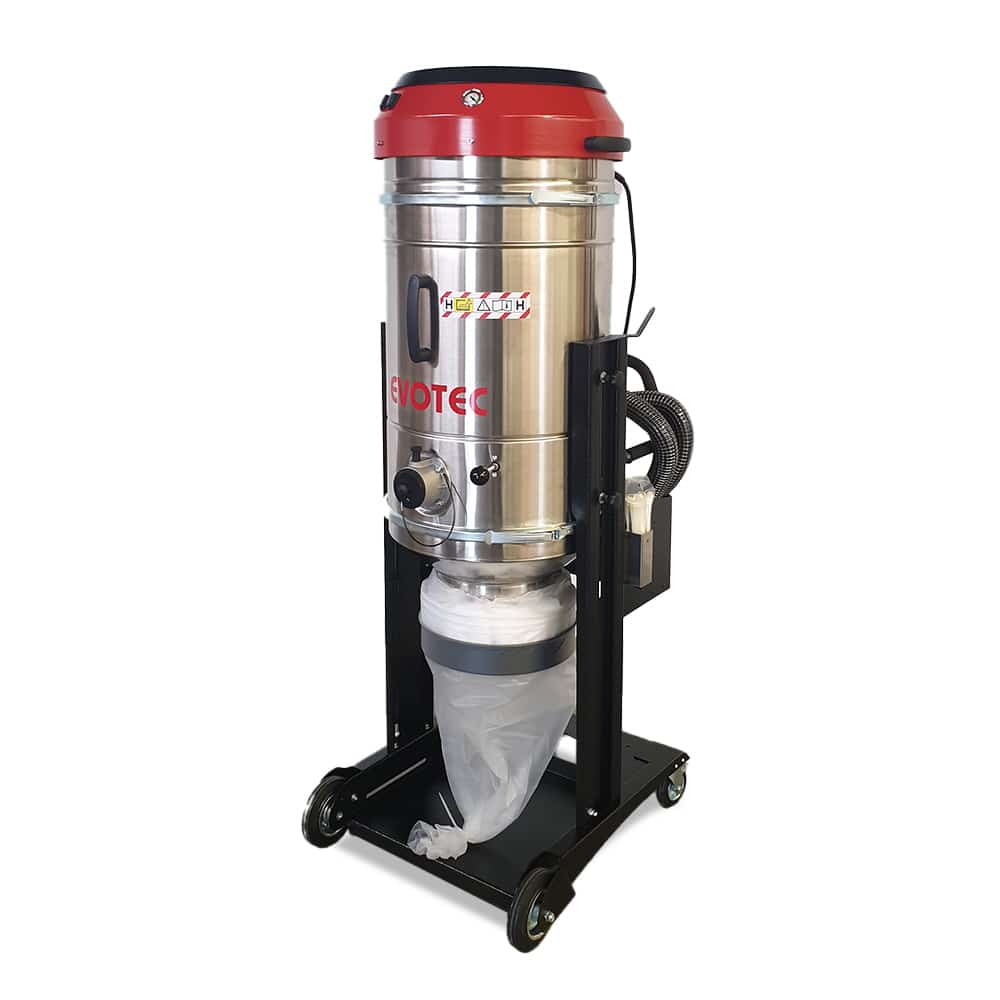

- Also available in Longopac version
- Parts in contact with the product made of V2A stainless steel (1.4301)
Upgrades
Model | EP 1136 | EP 1136 LP | |
---|---|---|---|
Tension | Volt | 230 | 230 |
Max. air volume | Watt | 3.600 | 3.600 |
Max. air volume | m³/h | 490 | 490 |
Negative pressure | mbar | 210 | 210 |
Filter area “M” | m² | 2,2 | 2,2 |
Filter area “H” | m² | 2,0 | 2,0 |
Waste disposal | Dirt container 60 l | Longopac | |
Protection class | IP 33 | IP 33 | |
Sound pressure level | dB(A) | 78 | 78 |
Suction connection | Ø mm | 80 | 80 |
Dimensions (LxWxH) | mm | 860x680x1380 | 860x680x1380 |
Weight | kg | 75 | 75 |
Dust class M | Art. no. | 151-1080 | 151-1086 |
Dust class H | Art. no. | 151-1081 | 151-1087 |
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Powerful industrial vacuum cleaners for vacuuming all dry dusts – from coarse dirt to microparticles (μm).
High quality standards – Well-designed by-pass units, sound-insulated turbo fan. Robust, smooth-running chassis for high mobility. Compact, modular design with high-quality stainless steel dirt container (V2A). Cyclone separator for better pre-separation of Fine Dust and coarse material. Industrial vacuum cleaner with stainless steel dirt container. Also available in Longopac design.
1st filter stage dust class M: Resistant polyester needle felt filter with PUR membrane, high filter power for long service life.
2nd filter stage dust class H: Absolute cartridge filter (H14).
Effective, easy-to-operate filter cleaning for high filter power and long working intervals without interruption. Vacuum pressure gauge for filter monitoring. Patented, tool-free filter change – simple and clean for employees/maintenance service. Quick coupling with lock and swivel device for secure connection of the suction hose.
Connection cable length: 8 m
Scope of delivery includes: 3.5 m suction hose Ø 50 mm and scoring nozzle.
-
