FEX 5000 PRO: Welding fume, soldering fume and dust extraction

230/ 400 volt - Process-adaptable extraction system, suitable for welding fumes, soldering fumes, vapors or airborne dust - EX-protected for Zone 22, dissipative ESD version or W3-compliant

Powerful continuous operation at a low sound pressure level

EC or medium-pressure fan, suitable for continuous operation (24/7), silencer with exhaust diffuser or exhaust air connection

Reliable HEPA combination filter system

Two independently replaceable cassette filters, dust classes E10 and H14 or alternatively activated carbon

Modern control technology

Display of device and filter status and much more on a clearly arranged control panel (.1 & .2)

Upgrade: ESD version

ESD powder coating and ESD castors. Device completely earthed with dissipative filter initial equipment set

Upgrade: EX protection ATEX Zone 22

Designed for safe extraction in Zone 22 thanks to electrostatically dissipative device equipment and device parts

Upgrade: W3-compliant version

Suitable for recirculation and exhaust air operation, including air outlet diffuser and expanded metal filter as spark arrester to prevent fire hazard

Configure your extraction system now – you will find all the details below. Or get personal advice – we will be happy to help you!

Model

FEX 5000 PRO.1
FEX 5000 PRO.2
FEX 5000 PRO.3
FEX 5000 PRO.4

Upgrade: Frequency inverter (PRO.3 & .4)

Upgrade: EX protection ATEX Zone 22

Upgrade: W3-compliant version

Upgrade: ESD version

Upgrade: Gas and particle sensor

Acid protection coating

Clear

Add to quote

Your application is not listed?

Parameter		FEX 5000 PRO.1	FEX 5000 PRO.2	FEX 5000 PRO.3	FEX 5000 PRO.4
Voltage at 50/60 Hz	Volt	230 ***)	230 ***)	400	400
Motor power	Watt	2 x 1,100	2 x 1,400	1,500	2,200
Max. airflow with 3 m suction hose Ø 100 mm	m³/h	800	1,200	1,000	1,200
Max. airflow with 3 m suction hose Ø 150 mm	m³/h	900	1,650	1,700	1,900
Max. airflow with 3 m suction hose Ø 200 mm	m³/h	1,000	1,750	1,900	2,200
Max. negative pressure during operation	Pa	9,000	5,000	3,300	3,800
1st filter stage: Particulate HEPA filter E10	m²	19	19	19	19
2nd filter stage: Particulate HEPA filter H14	m²	20	20	20	20
Alternative 2nd filter stage: Activated carbon adsorption filter	kg	2 × 12.5	2 × 12.5	2 × 12.5	2 × 12.5
Max. turbine airflow (free outlet)	m³/h	1,100	1,900	2,200	2,500
Max. vacuum pressure at closed inlet connection	Pa	10,000	6,000	3,500	4,000
Sound pressure level (depending on power setting)	dB(A)	51 – 65	56 – 70	72	72
Weight	kg	230	230	230	230
Dimensions L × W × H	mm	1000 × 785 × 1280	1000 × 785 × 1280	1000 × 785 × 1460	1000 × 785 × 1460
Suction connection Ø	mm	200 (optional 100/150)	200 (optional 100/150)	200 (optional 100/150)	200 (optional 100/150)
Exhaust air connection Ø	mm	200	200	200	200
Recirculated air		Silencer with outlet diffuser	Silencer with outlet diffuser	Silencer with outlet diffuser	Silencer with outlet diffuser
Protection rating		IP 54 (with connected exhaust air)	IP 54	IP 54	IP 54
Operating temperature	°C	5 – 40	5 – 40	5 – 40	5 – 40
Operating humidity (non-condensing)	%	10 – 90	10 – 90	10 – 90	10 – 90
Colour		RAL 7035	RAL 7035	RAL 7035	RAL 7035
Housing		Powder-coated steel	Powder-coated steel	Powder-coated steel	Powder-coated steel
Standard configuration	Part no.	710-2030	710-2031	710-2040	710-2041
Upgrade: Frequency inverter	Part no.	x	x	053-4008	053-4009
Upgrade: EX-protection	Part no.	054-8052	054-8052	054-8052	054-8052
Upgrade: W3 version (recirculated / exhaust air )**	Part no.	054-4015	054-4015	054-4013	054-4013
Upgrade: ESD version	Part no.	054-8053	054-8053	054-8053	054-8053

*) Operating data based on standard filter equipment in factory condition without additional options such as activated carbon filter, spark trap, ducting, etc. Actual performance depends on the operating point, which is determined by power setting, duct dimensions (Ø, length), and measurement at the suction point.
**) Refers to the standard version and may vary depending on equipment configuration.
***) Other voltages available on request.

Reliable filtering out of suspended particles through the use of a graduated combination filter system. Optional activated carbon component in the main filter reduces odors in the exhaust air. For extracting laser fumes, welding and soldering fumes, cutting fumes and various vapors and solvents.

Configurable for your extraction process

Modular design and 40 years of experience enable precise customization to your requirements

Motor unit

Powerful EC or medium-pressure blowers, Suitable for continuous operation (24/7), up to 2,800 watts

2-stage combination filter system

HEPA filter E10 (G4 mat can also be inserted) and H14, alternatively activated carbon adsorption filter

Suction connection at the top for suction via hose or suction arm

Standard Ø 200 mm, optional Ø 100 mm or Ø 150 mm connection

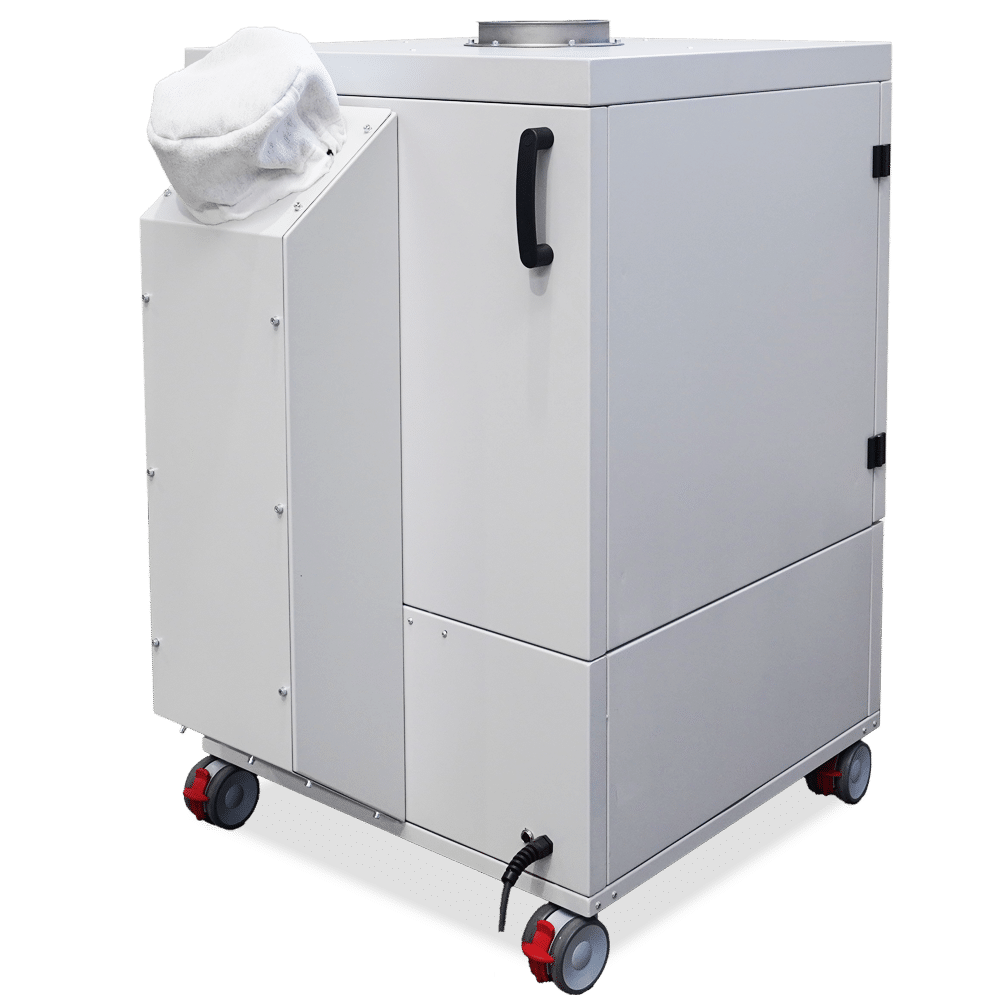

Exhaust air or recirculation mode possible

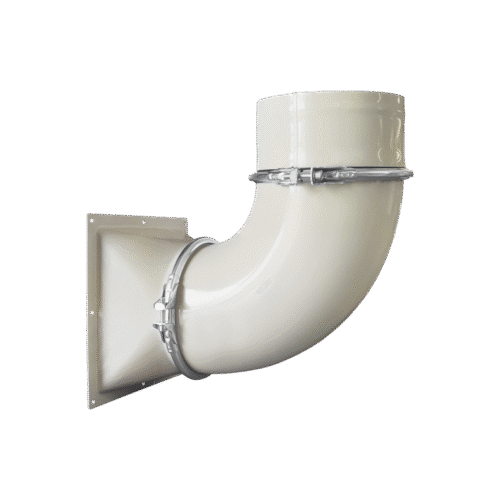

Optional Ø 200 mm exhaust air connection or silencer with air outlet diffuser for recirculation operation

Supplement your configuration with security upgrades:

FEX 5000 PRO.1 and .2:

Powerful extraction technology requires optimum control technology, which is why our new FEX series is equipped with configurable controls that can be adapted to your extraction process. Operated via a clear and intuitive control panel:

Control technology: An important safety factor for the extraction system

Test routine for motor, buttons, LEDs and more ensures all-round functionality for maximum safety
Comprehensive types of fault messages and filter status messages - with pictograms and error codes
Error log for traceability - to provide the best possible service
Filter fill level is displayed in real time - separately for each filter
And much more...

The control technology can also be adapted to your needs

Different user roles with different authorizations and individual passwords
Real-time fill level display individually adjustable to your suction material - for maximum accuracy
Individually adjustable run-on time to ensure the highest possible extraction rate
Alarm configuration according to the relevance in your extraction process
And much more...

It can also be connected to your existing controllers or devices. An 8-pin socket provides the convenient option of implementing a remote on/off switch. In addition, the operating status and signals from fault messages can be forwarded potential-free or with 24 V.

The gas and particle sensor upgrade completes the maximum safety and efficiency requirements for your extraction process.

FEX 5000 PRO.3 and .4:

Standard: Motor protection switch

To switch the motor on and off

Upgrade: Frequency inverter

For infinitely variable speed regulation and increasing the efficiency and performance of the turbine. Remote on/ off control included.

Vacuum pressure gauge for filter monitoring

Enables optimum consumables management

Two independently replaceable cassette filters MDF frame, completely incinerable, or robust metal version.

Filter stage 1: Dust class E

Particulate filter cassette: dust class E10, filter area 19 m²

Optional: G4 insert

G4 fleece mat can be inserted as an additional pre-filter in filter cassettes with free internal height.

In the EX upgrade:

Expanded metal filter to create discharge capability, HEPA filter E10, equipped with earthing wire for use in ATEX zone 22.

Filter stage 2: HEPA filter

Particulate filter cassette: Dust class H14, filter area 20 m²

Alternative filter stage 2: activated carbon

Adsorption filter cassettes: 2 x 12.5 kg activated carbon

In the W3 upgrade:

Includes spark protection grille to prevent the risk of fire

User-friendly, low-contamination filter change. All cassettes with a box height of 292 mm can be combined with each other . Note: Due to their weight, activated carbon cassettes are only half the height (145 mm), so 2 units are required. Additional filter mats or expanded metal filters can be inserted into filter boxes with a free internal height.
