FEX 3000.1/ .2: Schweißrauch- Lötrauch- und Staubabsaugung
Optional suction hose connection Ø 50 mm or Ø 80 mm/
Connection option for suction arm
Intuitive control panel with optimized control software - adaptable to your extraction process
Easily accessible filter chamber with configurable combination filter system -
for a user-friendly and low-contamination filter change
High mobility thanks to smooth-running castors with parking brake

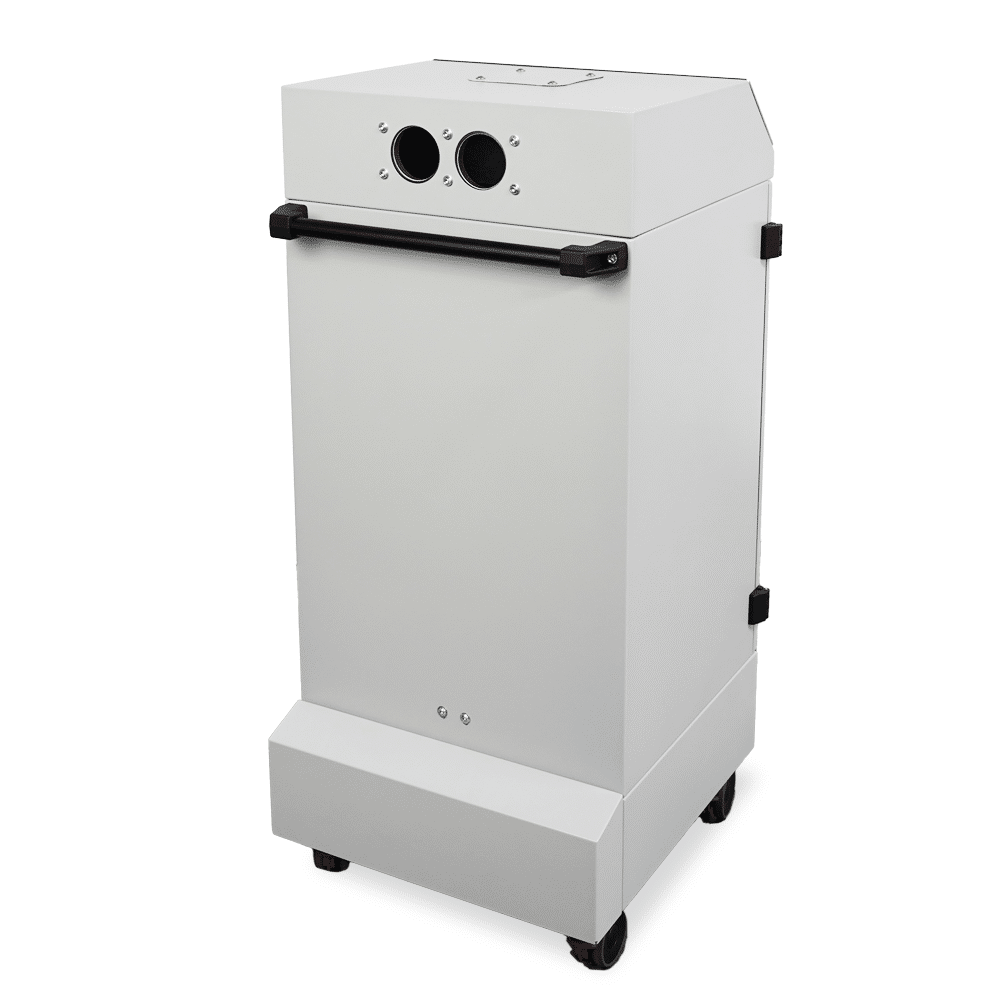

Double suction connection 2 x Ø 50mm at the rear - or single at the top
Powder-coated housing - protection class IP 55
Bottom-mounted turbine - low center of gravity
Exhaust air opening and electrical connections protected - Removable protective cover
Ergonomic push handle
Outlet diffuser or connection for exhaust air Ø 100 mm

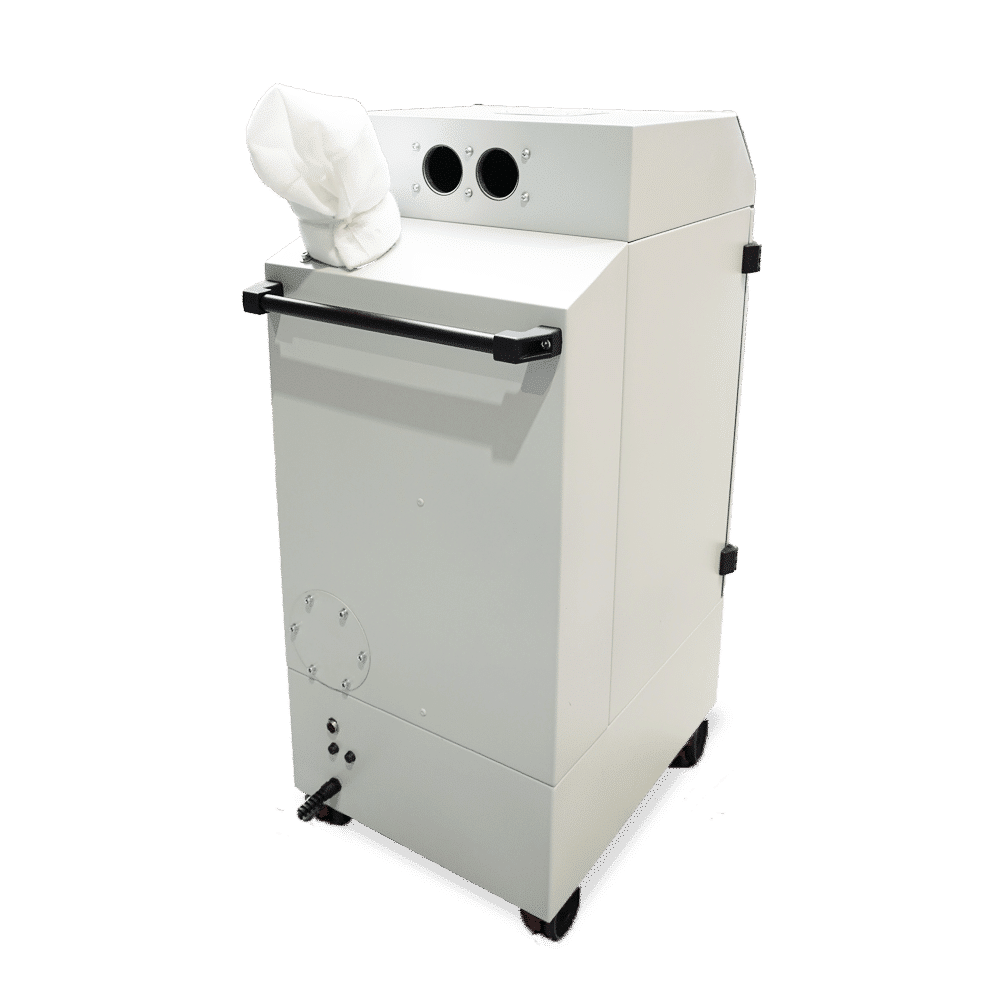

Silencer permanently installed at the rear - for the quietest possible extraction
8-pin socket for
Remote ON/OFF
Electrical connection
110 Volt/ 230 Volt
Prozessanpassbare Absauganlage, geeignet für Schweißrauch, Lötrauch, Dämpfe oder Schwebstäube – EX-geschützt für Zone 22, ableitfähige ESD-Ausführung oder W3-konform.
- Leistungsstarkes EC-Gebläse Dauerlauf geeignet (24/7), großes Luftvolumen, stufenlose Volumenstrom-Regelung
- Durch geringe Bauhöhe auch als Unter-Tisch-Gerät verwendbar
- Moderne Steuerungstechnik mit Anzeige Gerätestatus und Filtermeldungen
- Zuverlässige Filtration durch abgestuftes Kombifilter-System
- Anschluss für Ein-/Aus-Fernsteuerung
- FEX 3000.2 mit Schalldämpfer und Ausblasdiffusor für extra niedrigen Schalldruckpegel
Configure your extraction system now – you will find all the details below. Or get personal advice – we will be happy to help you!
Areas of application
| Model | FEX 3000.1 | FEX 3000.2 | |
|---|---|---|---|
| Voltage at 50/60 Hz | Volt | 230 (or 110) | 230 (or 110) |
| Motor power | watt | 1.100 | 2 x 1.100 |
| Max. air flow free-blowing at turbine | m³/h | 460 | 920 |
| Max. air flow in operating condition *) | |||
| with 3 m suction hose Ø 50 | m³/h | 260 | 360 |
| with 3 m suction hose Ø 80 | m³/h | 340 | 560 |
| with 2 x 3 m suction hose Ø 50 | m³/h | 2 x 180 | 2 x 240 |
| Maximum usable suction hose length | m | 12 (Ø 50 mm) | 12 (Ø 50 mm) |
| Max. vacuum | Pa | 10.000 | 10.000 |
| Max. vacuum in operating condition *) | Pa | 9.000 | 9.000 |
| 1st filter stage: storage filter frame F9 + M5 | m² | 2,5 + 0,8 | 2,5 + 0,8 |
| 2nd filter stage: HEPA filter H13/H14 | m² | 2,8 | 2,8 |
| 3rd filter stage: activated carbon adsorption filter | kg | 6,0 | 6,0 |
| Sound pressure level (depending on power setting) | dB(A) | 52 - 69 | 55 - 66 |
| Weight | kg | 29 (+20 Filter) | 38 (+20 Filter) |
| Dimensions L x W x H | mm | 400 x 430 x 957 | 590 x 430 x 1025 |
| Protection class | IP 55 | IP 55 | |
| Operating temperature | °C | 5 - 40 | 5 - 40 |
| Operating humidity (non-condensing) | % | 10 - 90% | 10 - 90% |
| Colour | RAL 7035 | RAL 7035 | |
| Housing | Steel, powder-coated | Steel, powder-coated | |
| Standard version | Art.-Nr. | 710-1140 | 710-1141 |
| Upgrade: ATEX-protected | Art.-Nr. | 054-8049 | 054-8049 |
| Upgrade: W3 version for welding fume | Art.-Nr. | 054-8050 | 054-8050 |
| Upgrade: ESD version | Art.-Nr. | 054-8051 | 054-8051 |
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Prozessanpassbare Absauganlage, geeignet für Schweißrauch, Lötrauch, Dämpfe oder Schwebstäube
Hohe Qualitätsstandards – für den 3-Schicht-Betrieb geeignet.
Komfortabler Filterwechsel durch 3-Kassetten-System mit unabhängig wechselbaren Filterkassetten.
Zuverlässiges Ausfiltern von Schwebstoffen durch den Einsatz eines 3-fach abgestuften Kombifiltersystems.
Der Aktivkohlefilter reduziert Gerüche in der Abluft. Zur Absaugung von Laserrauch, Schweiß- und Lötrauch, Schneiderauch sowie verschiedenen Dämpfen und Lösungsmitteln.
Dauerbetriebsfeste EC-Gebläse für die Absaugung großer Luftvolumen zur Erfassung von Schwebstäuben.
Absaugung mit bis zu zwei Schläuchen oder einem Absaugarm, Schlauchanschluss hinten oder oben.
Über intuitives Bedienfeld leicht und komfortabel an die individuellen Anforderungen anzupassen.
Übersichtliches Grafikdisplay und große, mehrfarbige LEDs für schnellen Überblick über Gerätestatus oder Einstellungen.
Standard-Ausführung:
Filter-Erstausrüstungssatz bestehend aus:
• Speicherfilter-Leerrahmen mit F9-Einsatz + M5-Einsatz
• HEPA Schwebstoff-Filter H13/ H14
• Aktivkohle-Filter
Upgrade:
EX-geschützt nach ATEX für die sichere Absaugung in Zone 22: Geräte-Ausstattung und Geräteteile elektrostatisch ableitfähig.
Filter-Erstausrüstungssatz (mit Erdungslasche) bestehend aus:
• Streckmetall-Filter
• Speicherfilter-Leerrahmen mit F9-Einsatz + M5-Einsatz
• HEPA Schwebstoff-Filter H13/ H14
• Aktivkohle-Filter
Upgrade:
W3-konforme Ausführung inkl. Streckmetall-Filter als Funkenfänger zur Vermeidung von Brandgefahr.
Filter-Erstausrüstungssatz bestehend aus:
• Streckmetall-Filter
• Speicherfilter-Leerrahmen mit F9-Einsatz + M5-Einsatz
• HEPA Schwebstoff-Filter H13/ H14
• Aktivkohle-Filter
Upgrade:
ESD-Ausführung mit ESD-Pulverbeschichtung und ESD-Rollen.
Filter-Erstausrüstungssatz bestehend aus:
• Speicherfilter-Leerrahmen mit F9-Einsatz M5-Einsatz
• HEPA Schwebstoff-Filter H13/H14
• Aktivkohle-Filter
HEPA filter for maximum filtration and safety
HEPA HEPA filters and adsorption filtersconsist of a sturdy MDF box with seal and are fully incinerable. Thanks to the separate design, you can configure your filter system to suit the application and replace it separately depending on the load.
As a storage filter, an empty frame can be configured according to your requirements with a wide range of suitable filter inserts. The W3-compliant version requires the use of an expanded metal filter as spark protection. (In combination with empty storage filter frame + filter insert + expanded metal filter).
Discover your individual combi filter system
Adapt the 3-stage combination filter system specifically to your extraction process.

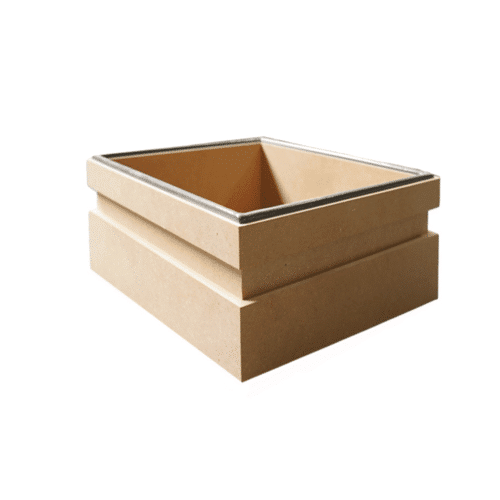

Storage filter empty frame
Standard version:
F9 filterand M5 insert
Free internal height = 95 mm
Total height = 240 mm
Dissipative version:
F9 filter, M5 insert and expanded metal filter
Free internal height = 80 mm
Total height = 146 mm
Suitable inserts for empty storage filter frames:
Expanded metal filter as spark guard, height 15 mm
G4 fleece mat, height 14 mm
G4-Z-Line 0.3 m² - cardboard frame, height 48 mm
G4-Z-Line 0.6 m² - cardboard frame height 96 mm
M5 filter 0.8 m² - cardboard frame, height 48 mm
F9 filter 2.2 m² - plastic profile, height 48 mm
HEPA filter
H13/H14 Cassette
5.6 m² filter surface,
Height 146 mm with seal
Adsorption filter
Activated carbon cassette
approx. 6 kg AK,
Height 146 mm with seal

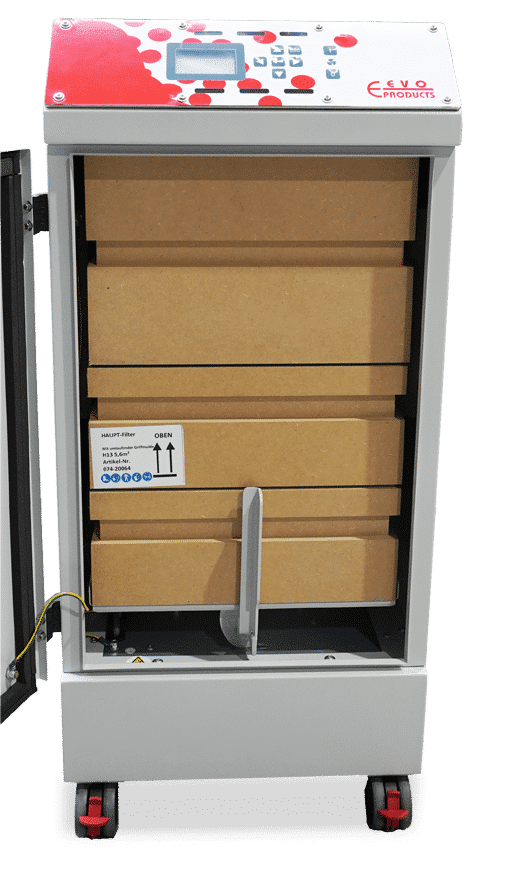

User-friendly and low-contamination filter change
The combination filter system of the FEX 3000.1/ .2 welding and soldering fume extraction unit makes it easy to change filters thanks to the easily accessible filter chamber.
Optimized control technology - adaptable to your extraction process
Powerful extraction technology requires optimum control technology, which is why our new FEX series is equipped with configurable controls that can be adapted to your extraction process. Operated via a clear and intuitive control panel:
Operating status, faults and warnings can be recognized at a glance by LED fields.
Intuitive control panel
Stepless regulation of the suction power during operation
Clear display to show the operating status and messages
Control technology: An important safety factor for the extraction system
- Test routine for motor, buttons, LEDs and more ensures all-round functionality for maximum safety
- Comprehensive types of fault messages and filter status messages - with pictograms and error codes
- Error log for traceability - to provide the best possible service
- Filter fill level is displayed in real time - separately for each filter
- And much more...
The control technology can also be adapted to your needs
- Different user roles with different authorizations and individual passwords
- Real-time fill level display individually adjustable to your suction material - for maximum accuracy
- Individually adjustable run-on time to ensure the highest possible extraction rate
- Alarm configuration according to the relevance in your extraction process
- And much more...
Connection for on/off remote control
It can also be connected to your existing controllers or devices. An 8-pin socket provides the convenient option of implementing a remote on/off switch. In addition, the operating status and signals from fault messages can be forwarded potential-free or with 24 V.
Gas and particle sensor for even more safety during extraction
The gas and particle sensor upgrade completes the maximum safety and efficiency requirements for your extraction process.
- Reports filter breakage - can initiate immediate shutdown
- Sensitivity and much more configurable in the user menu
- Test function to ensure functionality
- And much more...
