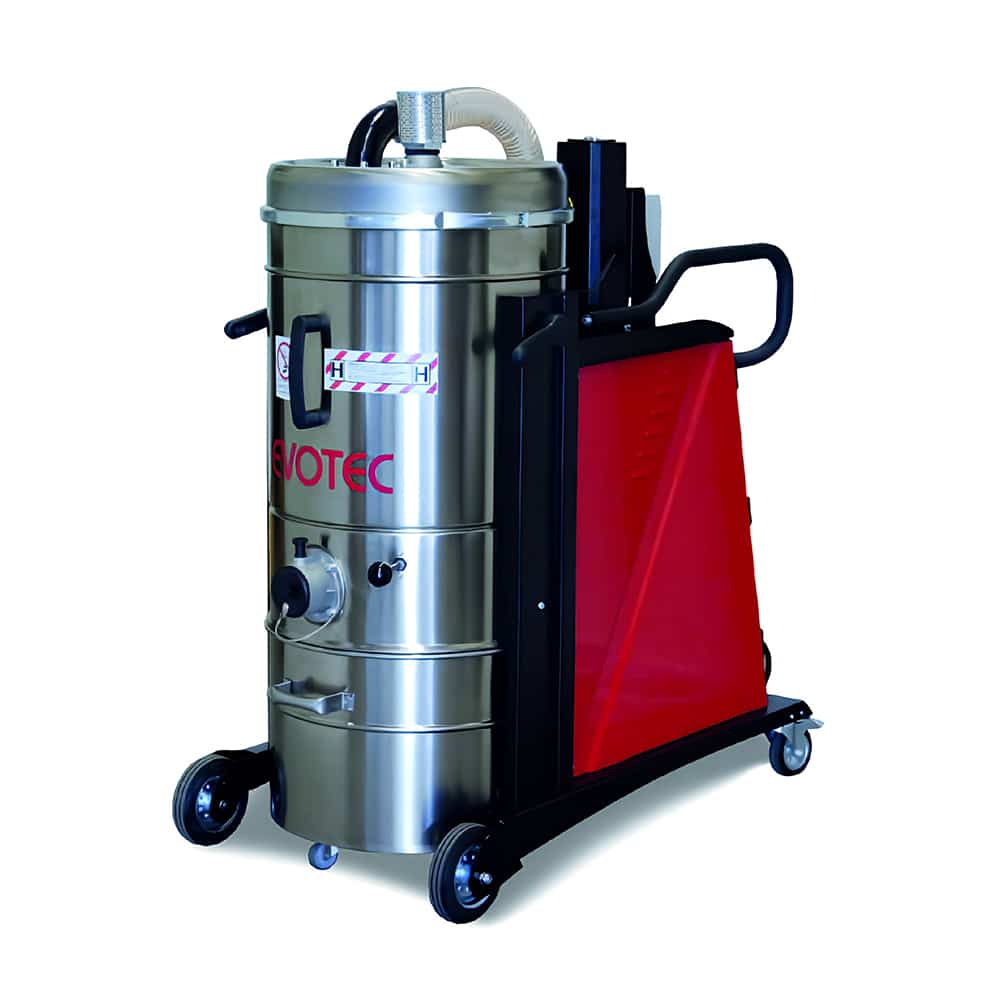

EP 2130/ EP 2140 ECO / EP 2155 ECO
Dry vacuum cleaner – 400 Volt
Powerful industrial vacuum cleaners for vacuuming all kinds of Dry dusts – from coarse dirt to microparticles (μm)
- Side channel blower for continuous operation and EX protection,
strong suction power, also suitable for pipe systems - Optionally available with Longopac disposal system
- Fully equipped for safety,
from 5.5 kW with star-delta contactor combination - Parts in contact with the product made of V2A stainless steel (1.4301)
Complete stainless steel equipment available on request
| Model | EP 2122 | EP 2130 | EP 2140 ECO | EP 2155 ECO | |
|---|---|---|---|---|---|
| Voltage | Volt | 400 | 400 | 400 *) | 400 *) |
| Motor power | Watt | 2.200 | 3.000 | 4.000 | 5.500 |
| Max. air volume | m³/h | 330 | 330 | 410 | 500 |
| Negative pressure | mbar | 240/300 max. | 240/310 max. | 240/300 max. | 260/320 max. |
| Filter surface “M” | m² | 2,2 oder 3,2 | 2,2 oder 3,2 | 3,2 | 3,2 |
| Filter surface “H” (H14) | m² | + 2,0 | + 2,0 | +4,3 | +4,3 |
| Dirt container | l | 60 | 60 | 60 | 60 |
| Protection class | IP 55 | IP 55 | IP 55 | IP 55 | |
| Sound pressure level | dB(A) | 70 | 70 | 76 | 76 |
| Suction connection | Ø mm | 80 | 80 | 80 | 80 |
| Dimensions (LxWxH) | mm | 1200x680x1350 | 1200x680x1350 | 1200x680x1350 | 1200x680x1350 |
| Weight | kg | 150 | 160 | 180 | 190 |
| Dust class M | Art. no. | 251-1040 | 251-1050 | 251-1060 | 251-1070 |
| Dust class M/type 22 | Art. no. | 251-1041 | 251-1051 | 251-1061 | 251-1071 |
| Dust class H | Art. no. | 251-1042 | 251-1052 | 251-1062 | 251-1072 |
| Dust class H/type 22 | Art. no. | 251-1043 | 251-1053 | 251-1063 | 251-1073 |
| Upgrade: 100 l dirt container | Art. no. | 053-4042 | 053-4042 | 053-4042 | 053-4042 |
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Powerful industrial vacuum cleaners for vacuuming all dry dusts – from coarse dirt to microparticles (μm).
High quality standards – well-designed, sound-insulated and maintenance-free turbine (side channel blower) as a vacuum generator. Suitable for 3-shift operation. Robust, smooth-running chassis for high mobility. Compact, modular design with high-quality stainless steel dirt container (V2A).
Also available with Longopac disposal system on request: “Endless” plastic bag for simple and low-contamination disposal of the suction material.
Cyclone separator for better pre-separation of Fine Dust and coarse material.
1st filter stage dust class M: Resistant polyester needle felt filter with PUR membrane, high filter power for long service life.
2nd filter stage dust class H: Absolute cartridge filter (H14).
Effective, easy-to-operate filter cleaning for high filtering power and long working intervals without interruption. Vacuum pressure gauge for filter monitoring.
Patented, tool-free filter change – simple and clean for employees/maintenance service. Direction of rotation phase monitor and vacuum limiting valve for flawless and safe use of the appliance. Quick-release coupling with lock and rotating device for secure connection of the suction hose.
EP 2130, EP 2140 ECO and EP 2155 ECO available with DGUV certificate.
Connection cable length: 8 m
Scope of delivery includes: 3.5 m suction hose Ø 50 mm and scoring nozzle.
