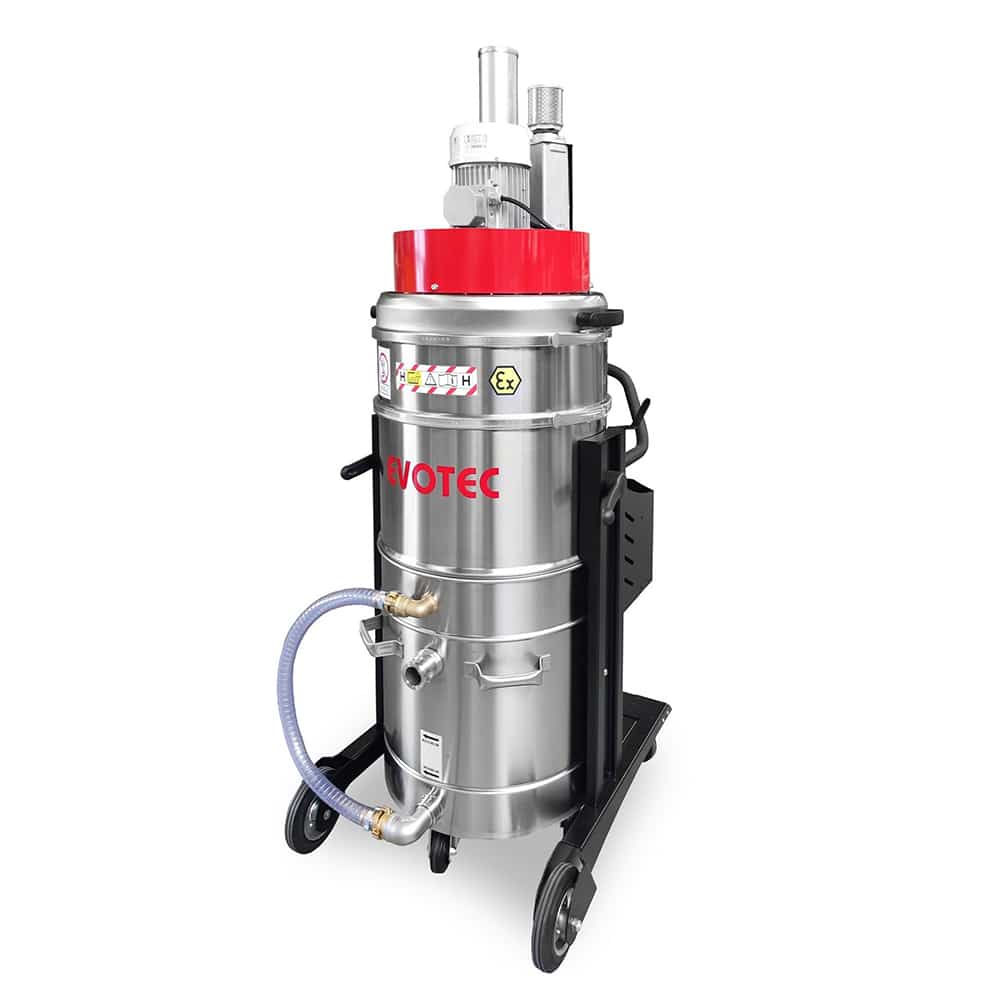

EP 2130 ECO-WB “H/Bauart22-EX”
Industrial vacuum cleaner Additive Manufacturing
Powerful industrial vacuum cleaner with EX protection for inert extraction with liquid bath separator integrated in the dirt container for the safe extraction of potentially explosive, deposited metal dusts such as aluminum, copper, titanium, etc.
- Fully equipped with safety features – Ideal for the 3D printing industry – Additive manufacturing: Complies with VDI 3405
- Inert process: Liquid bath for passivating explosive dusts (e.g. aluminum, titanium)
- Side channel blower for continuous operation and EX protection
- H14 cartridge filter (2m²) and special VA filter (1m²)
Upgrades
| Modell | EP 2130 ECO-WB „H/Bauart22-EX“ | |
|---|---|---|
| Voltage | Volt | 400 |
| Power | Watt | 3.000 |
| Max. air flow | m³/h | 320 |
| Negative pressure | mbar | 240/310 max. |
| Filter area "M" | m² | 1,0 |
| Filter area "H" (H14) | m² | + 2,0 |
| Dirt container complete | l | 100 |
| Dirt container Min.-Level | l | 25 |
| Dirt container Max.-Level | l | 35 |
| Protection class | IP 55 | |
| Noise level | dB(A) | 76 |
| Vacuum connection | Ø mm | 40 Kamlock-Anschluss |
| Dimensions (LxWxH) | mm | 830x680x1650 |
| Weight | kg | 100 |
| Version | Art.-Nr. | 151-3081 |
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Powerful inert industrial vacuum cleaners with liquid bath separator integrated in the dirt container for the extraction of potentially explosive, reactive, deposited metal dusts such as aluminum, copper, titanium, etc.
In the inert process, the potentially explosive and reactive suction material is passed through the liquid bath. passivated. Suction into the liquid bath is currently the only safe procedure, especially for highly reactive soiling residues!
Critical Fine Dust is bound to a liquid separation medium (e.g. water) – in accordance with VDI 3405.
EP 2130 ECO-WB: Large liquid bath tank with safety device for passivating the media sucked in:
Minimum level = 25 liters
Maximum level = 35 liters
Simple and quick optical fill level control (minimum and maximum fill) to ensure a sufficient liquid level.
Degassing flap prevents accumulation of gases and vapors. Additional special VA filter plus H14 filter cartridge for reliable separation in dust class H in accordance with EN 60335-2-69 and EN 62487.
High quality standard – EP 2130 ECO-WB and ECODustPro 15 WB with electric drive. Well-designed, sound-insulated turbine (side channel blower) on the exhaust air side. Or: EP 312-100 with compressed air ejectors – powerful compressed air version. Attention: external compressed air required! (operating pressure 6-10 bar)
Convenient lowering of the dirt container for easy disposal of the suction material. Suction elbow with Kamlock coupling for secure connection of the suction hose.
Connection cable length: 8 m
Scope of delivery includes: 3.5 m ESD suction hose Ø 40 mm and scoring nozzle
