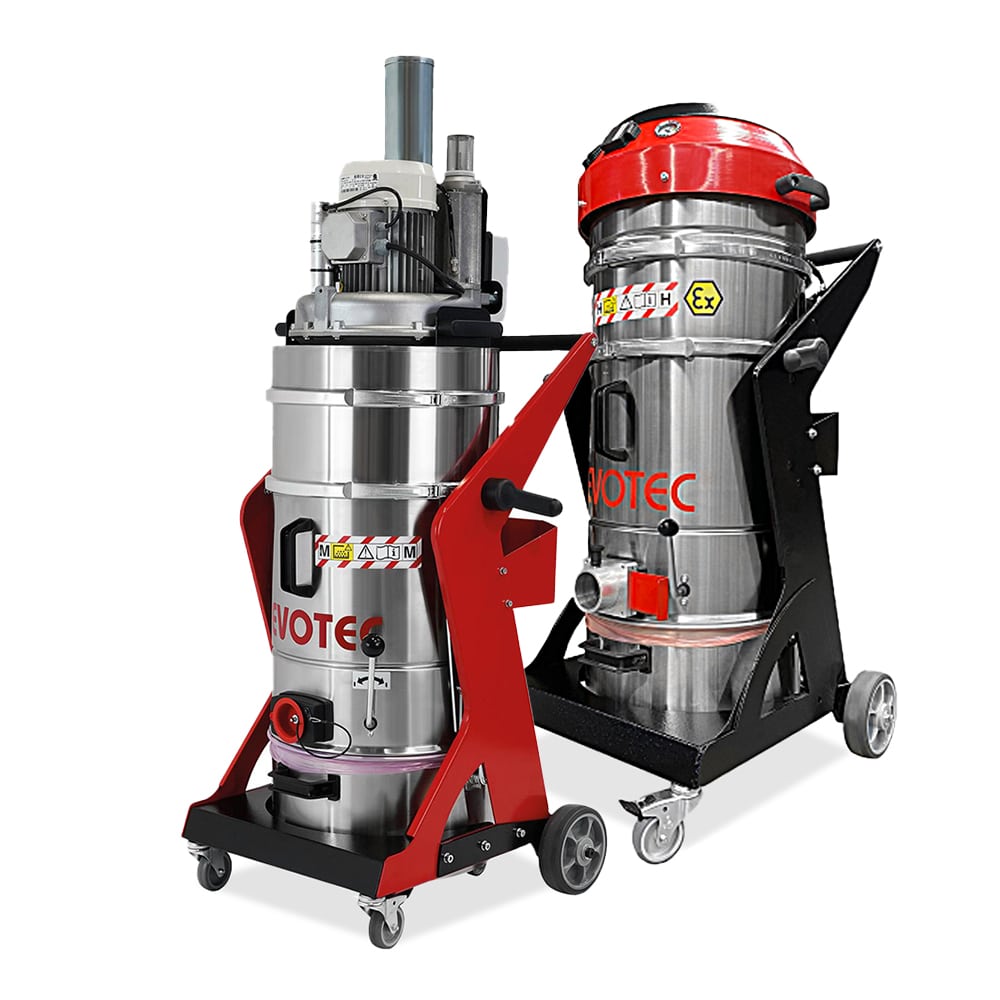

ECODustPro
Compact industrial vacuum cleaner – 230 volt
Powerful industrial vacuum cleaners for Extraction of coarse dirt down to microparticles (μm).
- Compact design, large fixed castors for use on stairs
- Convenient waste container lowering
- ECODust Pro 12: TRGS 519 certified for asbestos work
- ECODustPro 24: ASBEST version fulfills the requirements for the extraction of asbestos in accordance with TRGS 519.
- ECODust Pro 15: As an ATEX EX-protected version for Zone 22 available
- Also as inert safety vacuum cleaner for wet separation
| Model | ECODust Pro 12 | ECODust Pro 15 | ECODust Pro 24 | |
|---|---|---|---|---|
| Voltage | Volt | 230 | 230 | 230 |
| Motor power | Watt | 1.200 | 1.500 | 2.400 |
| Max. air volume | m³/h | 165 | 220 | 330 |
| Vacuum max. | mbar | 210 | 200/240 | 210 |
| Filter area “M” | m² | 1 | 1 | 1 |
| Filter surface “H” (H14) | m² | 1,7 | 1,7 | 1,7 |
| Dirt container | l | 25 | 25 | 25 |
| Protection class | IP X4 | IP 55 | IP 33 | |
| Sound pressure level | dB(A) | 74 | 72 | 78 |
| Suction connection | Ø mm | 60 | 60 | 60 |
| Dimensions (LxWxH) | mm | 480x600x1050 | 480x600x1380 | 480x600x1050 |
| Weight | kg | 25 | 49 | 25 |
| Staubklasse M | Art. no. | 151-3090 | 151-3093 | 151-3097 |
| Dust class M/type 22 | Art. no. | --- | 151-3094 | --- |
| Dust class H | Art. no. | 151-3091 | 151-3095 | --- |
| Dust class H/asbestos | Art. no. | 151-3092 | --- | 151-3098 |
| Dust class H/type 22 | Art. no. | --- | 151-3096 | --- |
| Cartridge filter | Art. no. | 2x0,5 m²: 053-3002 | 2x0,8 m²: 053-3001 | 2x0,8 m²: 053-3001 |
| Upgrade dirt container 35 liters | Art. no. | 053-4040 | 053-4040 | 053-4040 |
| Upgrade dirt container 50 liters | Art. no. | 053-4041 | 053-4041 | 053-4041 |

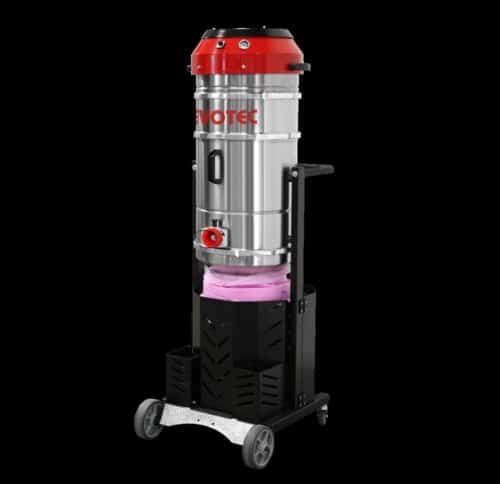

| Longopac | Art. no. | 053-xxxx | 053-xxxx | 053-xxxx |
| Clean room design | Art. no. | 053-xxxx | 053-xxxx | 053-xxxx |
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Powerful industrial vacuum cleaners for vacuuming all dry dusts – from coarse dirt to microparticles (μm).
High quality standards – Well-designed by-pass units, sound-insulated turbo fan. Robust, smooth-running chassis for high mobility. Compact, modular design with high-quality stainless steel dirt container (V2A). The industrial vacuum cleaner with cyclone separator enables better pre-separation of Fine Dust and coarse material.
1st filter stage dust class M: Resistant polyester needle felt filter with PUR membrane, high filter power for long service life .
Alternatively available as an upgrade: antistatic VA/polyester cartridge filter.(Filter area 1.0 m² or 1.6 m² depending on model)
2nd filter stage dust class H: Absolute cartridge filter (H14).
Effective, easy-to-operate filter cleaning, manually or by means of atmospheric pressure, for high filtering power and long working intervals without interruption. Vacuum pressure gauge for filter monitoring. Efficient, tool-free filter change – simple and clean for employees/maintenance service. Wide range of disposal options: Dirt container in 25/35/50 liters or by means of Longopac endless bag (as an upgrade on request).
- ECODustPro 12 ASBEST version DGUV-certified in accordance with TRGS 519 for the extraction of carcinogenic asbestos dusts.
- ECODustPro 24 ASBEST version fulfills the requirements for the extraction of asbestos according to TRGS 519.
- ECODustPro 15 and 15 WB cleanroom upgrade: With enclosed motor head.
Connection cable length: 8 m
Scope of delivery includes: 3.5 m suction hose Ø 40 mm and scoring nozzle.
Inert version for wet separation: ECODustPro 15 WB. For passivating potentially explosive dusts such as aluminum or titanium. CE conformity in accordance with DIN-EN 60335-2-69 incl. Annex AA and 2014/34/EU ATEX Zone 22.
1st filter stage: Liquid bath separator
2. Filter stage: Demister, VA filter 1.5 m²
3rd filter stage: H14 filter cartridge 1.7 m²
Scope of delivery: 3.5 m suction hose Ø 40 mm, scoring nozzle
