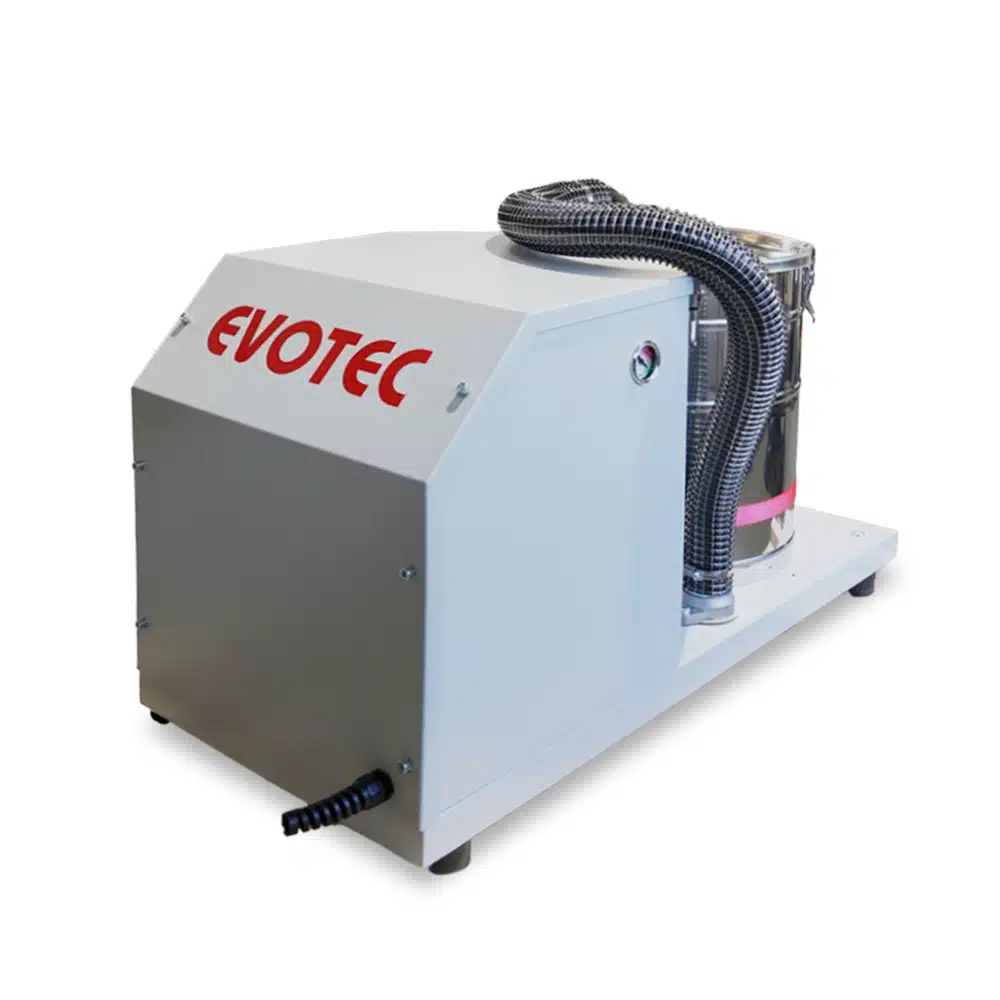

EBG built-in vacuum cleaner
Compact built-in vacuum cleaner with stainless steel dirt container for almost all
applications in industry and commerce, for example as a vacuum cleaner for dental laboratories.
- EC motor for continuous operation (24/7) and EX protection
- Process-adaptable extraction unit with high negative pressure for the extraction of all dry dusts
- Simple under-sink appliance with intelligent features
- Stainless steel version on request
Industries, processes and media
| Assemblies | EBG | EBG | EBG | |
|---|---|---|---|---|
| 1. base plate with turbine (select) Including turbine cladding and feet | Motor power (watts) | 1.100 | 1.100 | 1.800 |
Technical details:|
| | |||
| Max. air volume | m³/h | 380 | 180 | 340 |
| Vacuum max. | Pa | 10.000 | 23.000 | 21.000 |
| Operating vacuum max.*) | Pa | 9.500 | 21.000 | 19.500 |
| Sound pressure level at 40 % power | dB(A) | 60 | 60 | 60 |
| Sound pressure level at 100 % power | dB(A) | 70 | 70 | 70 |
| Dimensions (LxWxH) (Varies depending on equipment) | mm | 850x410x650-800 | 850x410x650-800 | 850x410x650-800 |
| Weight | kg | 28 | 28 | 30 |
| 230 volt type no.: (50/60 Hz) | 151-2022 | 151-2023 | 151-2024 | |
| 400 volt item no.: (50/60 Hz) | --- | 151-2062 | 151-2063 | |
| 2. dirt container (add) Including lid and cartridge filter Suction opening Ø 50 mm (lid suction via pipe bend) | ||||
| 28 Liter, Ø 310 mm | Art. no.: 054-3390 | Art. no.: 054-3390 | Art. no.: 054-3390 | |
| 38 Liter, Ø 310 mm | Art. no.: 054-3391 | Art. no.: 054-3391 | Art. no.: 054-3391 | |
| 78 Liter, Ø 400 mm | Art. no.: 054-3392 | Art. no.: 054-3392 | Art. no.: 054-3392 | |
| 78 liter compression, Ø 390 mm | Art. no.: 054-3393 | Art. no.: 054-3393 | Art. no.: 054-3393 | |
| Upgrades (optional) | ||||
| EX protection ATEX Zone 22 | Item no. | 054-8042 | 054-8042 | 054-8042 |
| ESD version (RAL 7035) | Item no. | 054-8044 | 054-8044 | 054-8044 |
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Compact extraction system as a built-in appliance with stainless steel dirt container for almost all industrial and commercial applications.
Robust EC blowers are suitable for continuous use, even in 3-shift operation. High-quality cartridge filters for high filter power and long filter service life.
Ideal for use:
- On conveying devices (e.g. granulates etc.) for vacuum generation and
filtration of the residual dust. - Integration into production and manufacturing processes for
vacuum generation. - Use as a quiet under-counter device, e.g. in goldsmiths,
dental laboratories or for engraving. - Continuous extraction of dust from production or
packaging machines.
Customizable according to requirements
Assemble your system individually from these assemblies:
– Base plate
– Dirt container
– Upgrades
