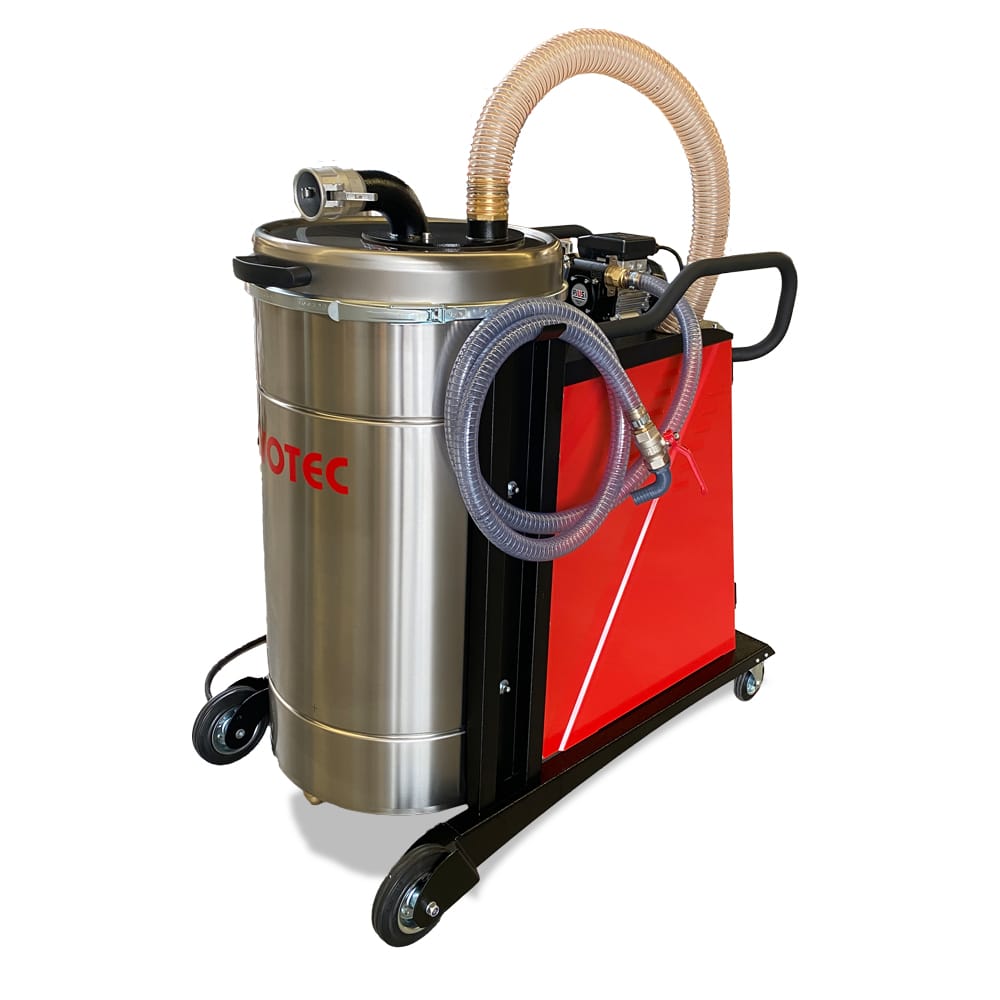

Compression vacuum cleaner EP 2330/ 40
Compression vacuum cleaner 400V
Powerful industrial vacuum cleaners for compression: Ideal for Extraction of compressible fabrics and dusts
- High suction power promotes optimum pressing (compression) of the suctioned material
- Sight glass for level monitoring
- Reusable cloth filter bag in which the compressed suction material is collected
- Fully equipped with safety technology
| Model | EP 2330 | EP 2240 | |
|---|---|---|---|
| Tension | Volt | 400 | 400 |
| Motor power | Watt | 3.000 | 4.000 |
| Max. air volume | m³/h | 330 | 330 |
| Vacuum max. | mbar | 340 | 360 |
| Filter area | m² | 1,3 | 1,3 |
| Dirt container | l | 145 | 145 |
| Filter bag volume | l | 100 | 100 |
| Sound pressure level | dB(A) | 73 | 76 |
| Suction connection | Ø mm | 50 with Kamlock connection | 50 with Kamlock connection |
| Dimensions (LxWxH) | mm | 1200x680x1360 | 1200x680x1360 |
| Weight | kg | 85 | 87 |
| Dust class M | Art. no. | 251-2040 | 251-2050 |
*) Operating data including standard filter equipment in factory condition without further options such as spark trap, duct or H-upgrade, etc. The operating point varies due to power setting and pipe design (Ø, length) as well as detection at the intake point.
**) Based on the standard version and varies depending on the device equipment
Powerful industrial vacuum cleaners for the extraction of compressible fabrics and dusts. Ideal for use in the textile, paper and packaging industries.
High quality standards – Well-designed, sound-insulated and maintenance-free turbine (side channel blower) as a vacuum generator. Suitable for 3-shift operation.
Textile industry: Extraction of fibers and threads from textile machines
Packaging industry: Extraction of film residues, packaging residues and empty packaging
Paper industry: Extraction of cutting dust and edge trim
These industrial vacuum cleaners achieve a higher capacity compared to conventional industrial vacuum cleaners thanks to the compression. The material is sucked into the filter bag through the suction air duct. The material is compressed in the filter bag by the high vacuum. The compressed material can then be easily disposed of or recycled.
Suction elbow with Kamlock coupling for secure connection of the suction hose.
Connection cable length: 8 m
Scope of delivery includes: 3.5 m suction hose Ø 50 mm and scoring nozzle.
